IPB100N06S3L-03 - Power-Transistor

Product Overview

Infineon Technologies

📥 Download Datasheet

IPB100N06S3L-03 Power-Transistor by Infineon Technologies - Datasheet Preview — Datasheet preview – IPB100N06S3L-03

Datasheet Details

Part number	IPB100N06S3L-03
Manufacturer	Infineon Technologies
File Size	189.90 KB
Description	Power-Transistor
Datasheet	IPB100N06S3L-03 Datasheet
Note	This datasheet PDF includes multiple part numbers: IPB100N06S3L-03, IPB-100N. Please refer to the document for exact specifications by model.

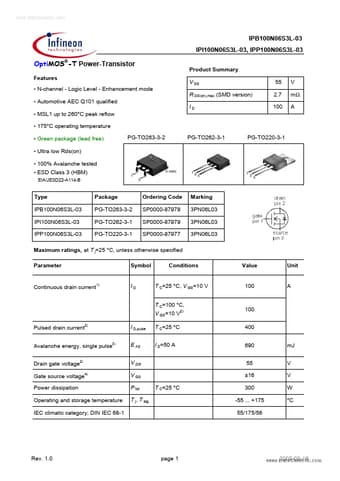

Additional preview pages of the IPB100N06S3L-03 datasheet.

Product details

Description

and charts stated herein.

Features

N-channel - Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested.
ESD Class 3 (HBM) EIA/JESD22-A114-B Product Summary V DS R DS(on),max (SMD version) ID 55 2.7 100 V mΩ A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB100N06S3L-03 IPI100N06S3L-03 IPP100N06S3L-03 Package PG-TO263-3-2.
