IPB100N04S4-H2 - OptiMOS-T2 Power-Transistor

Product Overview

Infineon Technologies

📥 Download Datasheet

IPB100N04S4-H2 OptiMOS-T2 Power-Transistor by Infineon Technologies - Datasheet Preview — Datasheet preview – IPB100N04S4-H2

Datasheet Details

Part number	IPB100N04S4-H2
Manufacturer	Infineon Technologies
File Size	134.11 KB
Description	OptiMOS-T2 Power-Transistor
Datasheet	IPB100N04S4-H2 Datasheet

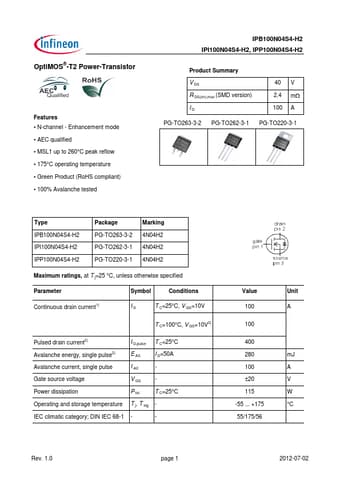

Additional preview pages of the IPB100N04S4-H2 datasheet.

Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB100N04S4-H2 IPI100N04S4-H2, IPP100N04S4-H2 Product Summary V DS R DS(on),max (SMD version) ID 40 V 2.4 mW 100 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB100N04S4-H2 IPI100N04S4-H2 IPP100N04S4-H2 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N04H2 4N04H2 4N04H2.
