IPB120N04S4L-02 - Power-Transistor

Infineon

📥 Download Datasheet

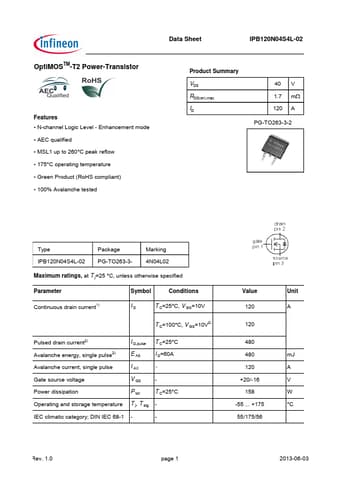

IPB120N04S4L-02 Datasheet Preview — Preview of IPB120N04S4L-02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPB120N04S4L-02
Manufacturer	Infineon ↗
File Size	199.67 KB
Description	Power-Transistor
Datasheet	IPB120N04S4L-02-Infineon.pdf

IPB120N04S4L-02 Product details

Features

N-channel Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested Product Summary VDS RDS(on),max ID 40 V 1.7 mΩ 120 A PG-TO263-3-2 Type IPB120N04S4L-02 Package PG-TO263-3- Marking 4N04L02 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symbol Conditions I D T C=25°C, V GS=10V T C=1.
