IPD50N03S2-07 - Power Transistor

Infineon

📥 Download Datasheet

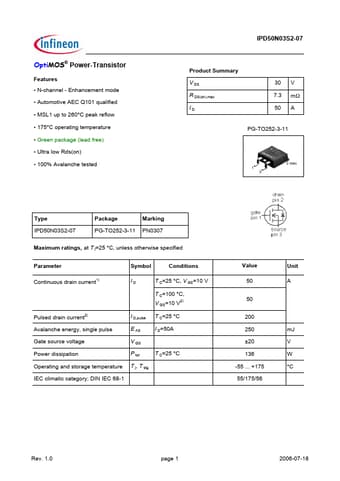

IPD50N03S2-07 Datasheet Preview — Preview of IPD50N03S2-07 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N03S2-07
Manufacturer	Infineon ↗
File Size	147.82 KB
Description	Power Transistor
Datasheet	IPD50N03S2-07-Infineon.pdf

IPD50N03S2-07 Product details

Description

and charts stated herein.

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPD50N03S2-07 Product Summary V DS R DS(on),max ID 30 V 7.3 mΩ 50 A PG-TO252-3-11 Type IPD50N03S2-07 Package Marking PG-TO252-3-11 PN0307 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous.
