IPD50N04S4-10 - Power Transistor

Infineon

📥 Download Datasheet

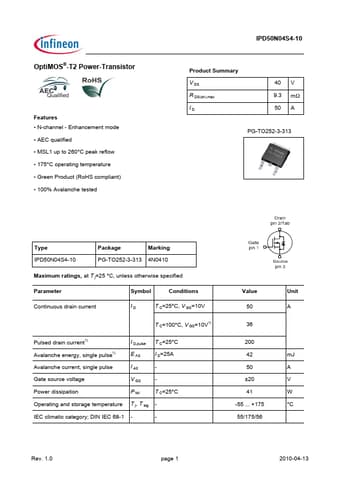

IPD50N04S4-10 Datasheet Preview — Preview of IPD50N04S4-10 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N04S4-10
Manufacturer	Infineon ↗
File Size	150.80 KB
Description	Power Transistor
Datasheet	IPD50N04S4-10-Infineon.pdf

IPD50N04S4-10 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPD50N04S4-10 Product Summary V DS R DS(on),max ID 40 V 9.3 mΩ 50 A PG-TO252-3-313 Type IPD50N04S4-10 Package Marking PG-TO252-3-313 4N0410 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current I D T C=25°C, V GS=10V.
