IPD50N04S3-09 - Power Transistor

Infineon

📥 Download Datasheet

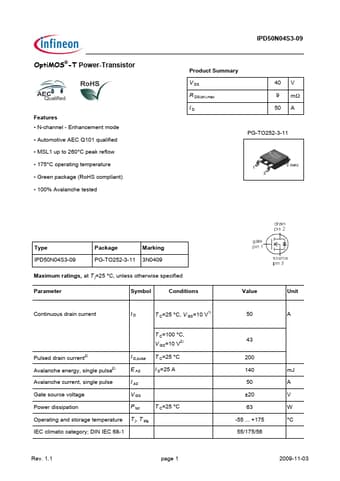

IPD50N04S3-09 Datasheet Preview — Preview of IPD50N04S3-09 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N04S3-09
Manufacturer	Infineon ↗
File Size	179.23 KB
Description	Power Transistor
Datasheet	IPD50N04S3-09-Infineon.pdf

IPD50N04S3-09 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
100% Avalanche tested IPD50N04S3-09 Product Summary V DS R DS(on),max ID 40 V 9 mΩ 50 A PG-TO252-3-11 Type IPD50N04S3-09 Package Marking PG-TO252-3-11 3N0409 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current I D T C=25.
