IPD50N04S4L-08 - Power Transistor

Infineon

📥 Download Datasheet

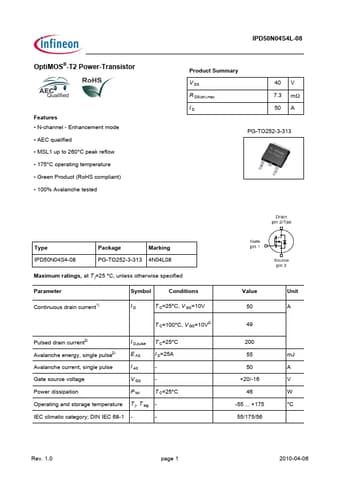

IPD50N04S4L-08 Datasheet Preview — Preview of IPD50N04S4L-08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N04S4L-08
Manufacturer	Infineon ↗
File Size	150.90 KB
Description	Power Transistor
Datasheet	IPD50N04S4L-08-Infineon.pdf

IPD50N04S4L-08 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPD50N04S4L-08 Product Summary V DS R DS(on),max ID 40 V 7.3 mΩ 50 A PG-TO252-3-313 Type IPD50N04S4-08 Package Marking PG-TO252-3-313 4N04L08 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current1) I D T C=25°C, V GS.
