IPD50N03S2L-06 - Power Transistor

Infineon

📥 Download Datasheet

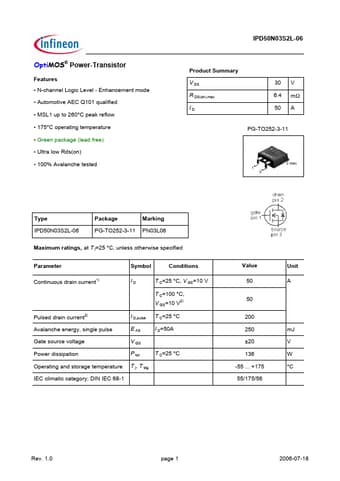

IPD50N03S2L-06 Datasheet Preview — Preview of IPD50N03S2L-06 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50N03S2L-06
Manufacturer	Infineon ↗
File Size	148.73 KB
Description	Power Transistor
Datasheet	IPD50N03S2L-06-Infineon.pdf

IPD50N03S2L-06 Product details

Description

and charts stated herein.

Features

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPD50N03S2L-06 Product Summary V DS R DS(on),max ID 30 V 6.4 mΩ 50 A PG-TO252-3-11 Type IPD50N03S2L-06 Package Marking PG-TO252-3-11 PN03L06 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditio.
