IPD90N03S4L-02 - Power-Transistor

Infineon

📥 Download Datasheet

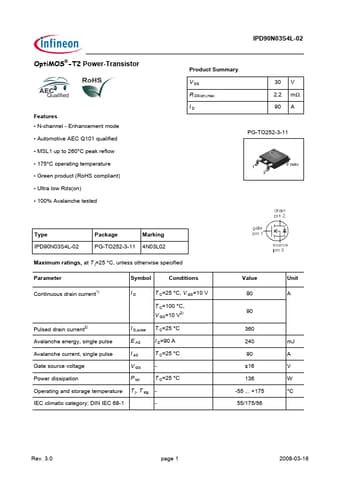

IPD90N03S4L-02 Datasheet Preview — Preview of IPD90N03S4L-02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD90N03S4L-02
Manufacturer	Infineon ↗
File Size	157.29 KB
Description	Power-Transistor
Datasheet	IPD90N03S4L-02-Infineon.pdf

IPD90N03S4L-02 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green product (RoHS compliant).
Ultra low Rds(on).
100% Avalanche tested IPD90N03S4L-02 Product Summary V DS R DS(on),max ID 30 V 2.2 mΩ 90 A PG-TO252-3-11 Type IPD90N03S4L-02 Package Marking PG-TO252-3-11 4N03L02 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Con.
