IPD90N04S4-02 - Power-Transistor

Infineon

📥 Download Datasheet

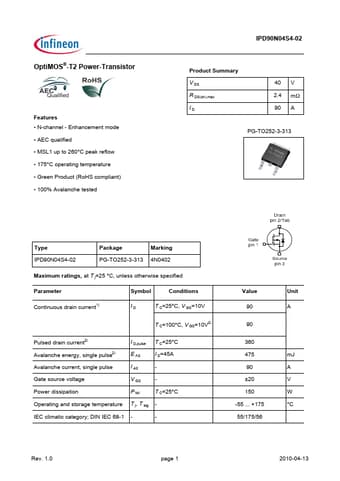

IPD90N04S4-02 Datasheet Preview — Preview of IPD90N04S4-02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD90N04S4-02
Manufacturer	Infineon ↗
File Size	149.77 KB
Description	Power-Transistor
Datasheet	IPD90N04S4-02-Infineon.pdf

IPD90N04S4-02 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPD90N04S4-02 Product Summary V DS R DS(on),max ID 40 V 2.4 mΩ 90 A PG-TO252-3-313 Type IPD90N04S4-02 Package Marking PG-TO252-3-313 4N0402 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current1) I D T C=25°C, V GS=1.
