IPI80N03S4L-03 - Power-Transistor

Infineon

📥 Download Datasheet

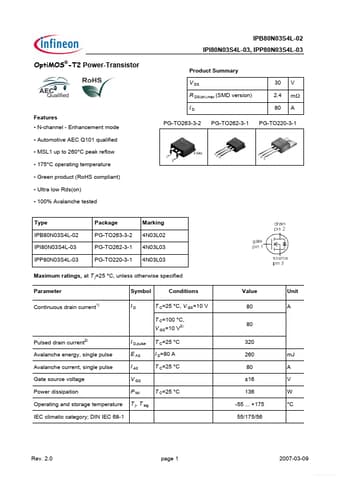

IPI80N03S4L-03 Datasheet Preview — Preview of IPI80N03S4L-03 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPI80N03S4L-03
Manufacturer	Infineon ↗
File Size	211.28 KB
Description	Power-Transistor
Datasheet	IPI80N03S4L-03_Infineon.pdf

IPI80N03S4L-03 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green product (RoHS compliant).
Ultra low Rds(on).
100% Avalanche tested PG-TO263-3-2 PG-TO220-3-1 Type IPB80N03S4L-02 IPI80N03S4L-03 IPP80N03S4L-03 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N03L02 4N03L03 4N03L03 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous dra.
