IPI80N03S4L-04 - Power-Transistor

Infineon

📥 Download Datasheet

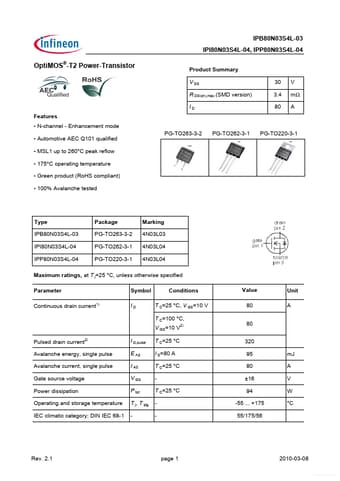

IPI80N03S4L-04 Datasheet Preview — Preview of IPI80N03S4L-04 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPI80N03S4L-04
Manufacturer	Infineon ↗
File Size	184.68 KB
Description	Power-Transistor
Datasheet	IPI80N03S4L-04_Infineon.pdf

IPI80N03S4L-04 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green product (RoHS compliant).
100% Avalanche tested PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N03S4L-03 IPI80N03S4L-04 IPP80N03S4L-04 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N03L03 4N03L04 4N03L04 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symb.
