IPI80N04S3-04 - Power-Transistor

Infineon

📥 Download Datasheet

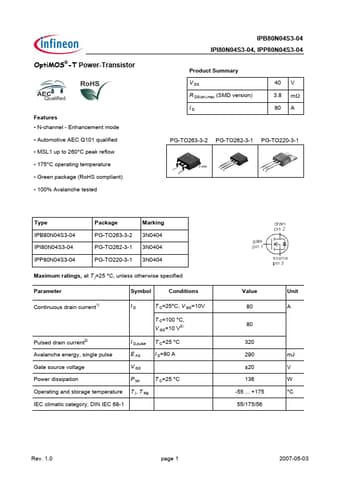

IPI80N04S3-04 Datasheet Preview — Preview of IPI80N04S3-04 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPI80N04S3-04
Manufacturer	Infineon ↗
File Size	187.43 KB
Description	Power-Transistor
Datasheet	IPI80N04S3-04-Infineon.pdf

IPI80N04S3-04 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
100% Avalanche tested IPB80N04S3-04 IPI80N04S3-04, IPP80N04S3-04 Product Summary V DS R DS(on),max (SMD version) ID 40 V 3.8 mΩ 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N04S3-04 IPI80N04S3-04 IPP80N04S3-04 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 3N0404 3N040.
