IPI80N04S4-03 - Power-Transistor

Infineon

📥 Download Datasheet

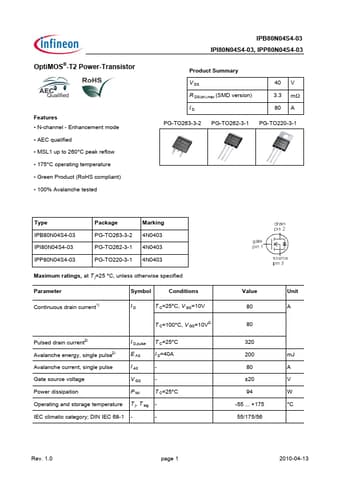

IPI80N04S4-03 Datasheet Preview — Preview of IPI80N04S4-03 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPI80N04S4-03
Manufacturer	Infineon ↗
File Size	156.09 KB
Description	Power-Transistor
Datasheet	IPI80N04S4-03-Infineon.pdf

IPI80N04S4-03 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB80N04S4-03 IPI80N04S4-03, IPP80N04S4-03 Product Summary V DS R DS(on),max (SMD version) ID 40 V 3.3 mΩ 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N04S4-03 IPI80N04S4-03 IPP80N04S4-03 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0403 4N0403 4N0403 Maximu.
