IPT034N15NM6 150V MOSFET

Infineon

Description

Public IPT034N15NM6 Final datasheet MOSFET OptiMOS™ 6 Power‑Transistor, 150 V .
1 Maxi.

📥 Download Datasheet

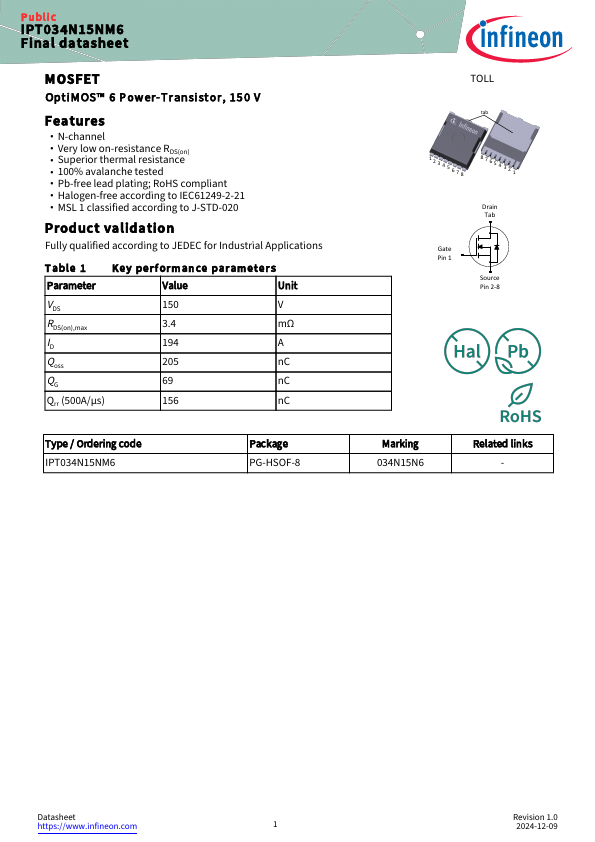

IPT034N15NM6 Datasheet Preview — Preview of IPT034N15NM6 PDF

Datasheet Specifications

Part number: IPT034N15NM6
Manufacturer: Infineon ↗
File Size: 1.14 MB
Datasheet: IPT034N15NM6-Infineon.pdf
Description: 150V MOSFET

Features

* N‑channel
* Very low on‑resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb‑free lead plating; RoHS compliant
* Halogen‑free according to IEC61249‑2‑21
* MSL 1 classified according to J‑STD‑020 Product validation Ful

Applications

* Table 1 Key performance parameters Parameter Value Unit VDS 150 V RDS(on),max 3.4 mΩ ID 194 A Qoss 205 nC QG 69 nC Qrr (500A/μs) 156 nC Type / Ordering code IPT034N15NM6 Package PG‑HSOF‑8 TOLL tab 12 34 5 678 87654 321 Drain Tab Gate Pin 1 Source Pin 2-8 Marking 034N15
