IPT010N08NM5, 80V MOSFET

IPT010N08NM5 MOSFET OptiMOSTM 5 Power-Transistor, 80 V .

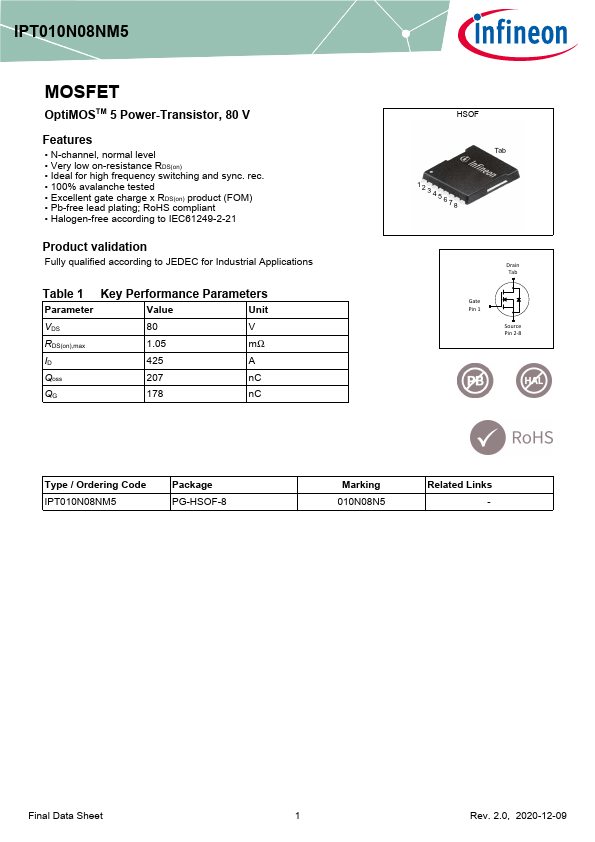

datasheet Preview Page 1 from Datasheet4u.com

IPT010N08NM5-Infineon.pdf

IPT010N08NM5 Datasheet Preview — Preview of IPT010N08NM5 PDF

Datasheet Details

Part number:

IPT010N08NM5

Manufacturer:

Infineon ↗

File Size:

1.00 MB

Description:

80V MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Ideal for high frequency switching and sync. rec.
* 100% avalanche tested
* Excellent gate charge x RDS(on) product (FOM)
* Pb-free lead plating; RoHS compliant
* Halogen-free accordi

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 1.05 mΩ ID 425 A Qoss 207 nC QG 178 nC HSOF Tab 12345 678 Drain Tab Gate Pin 1 Source Pin 2-8 Type / Ordering Code IPT010N08NM5 Package PG-HSOF-8 Marking 010N08N5 Related Links - Final Data S
