IPT015N10N5, MOSFET

IPT015N10N5 MOSFET OptiMOSTM 5 Power-Transistor, 100 V .

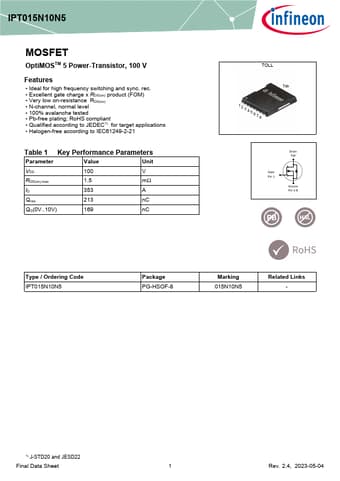

datasheet Preview Page 1 from Datasheet4u.com

IPT015N10N5-Infineon.pdf

IPT015N10N5 Datasheet Preview — Preview of IPT015N10N5 PDF

Datasheet Details

Part number:

IPT015N10N5

Manufacturer:

Infineon ↗

File Size:

948.22 KB

Description:

MOSFET

Features

* Ideal for high frequency switching and sync. rec.
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Qualified according to J

Applications

* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 1.5 mΩ ID 353 A Qoss 213 nC QG(0V. .10V) 169 nC TOLL Tab 12345 678 Drain Tab Gate Pin 1 Source Pin 2-8 Type / Ordering Code IPT015N10N5 Package
