IPTG025N08NM5 Datasheet, Mosfet, Infineon

IPTG025N08NM5 Features

  • Mosfet
  • N-channel, normal level
  • Very low on-resistance RDS(on)
  • Excellent gate charge x RDS(on) product (FOM)
  • 100% avalanche tested
  • Pb-free lead

PDF File Details

Part number:

IPTG025N08NM5

Manufacturer:

Infineon ↗

File Size:

1.25MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

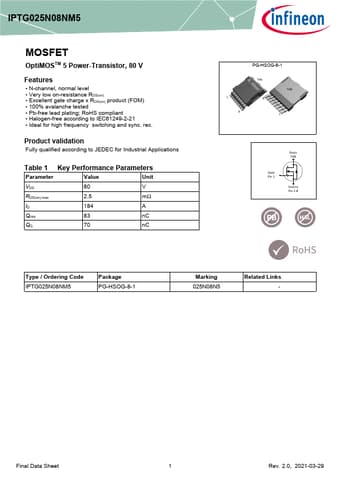

Datasheet Preview: IPTG025N08NM5 📥 Download PDF (1.25MB)
Page 2 of IPTG025N08NM5 Page 3 of IPTG025N08NM5

IPTG025N08NM5 Application

  • Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 2.5 mΩ ID 184 A Qoss 83 nC QG 70 nC
