IPTG039N15NM5 Datasheet - Infineon

IPTG039N15NM5, MOSFET

Public IPTG039N15NM5 Final datasheet MOSFET OptiMOS™ 5 Power‑Transistor, 150 V .
1 Maxi.

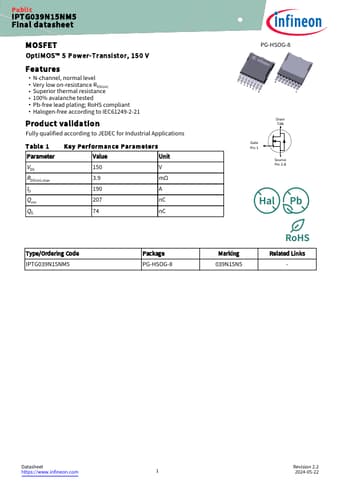

datasheet Preview Page 1 from Datasheet4u.com

IPTG039N15NM5-Infineon.pdf

IPTG039N15NM5 Datasheet Preview — Preview of IPTG039N15NM5 PDF

Datasheet Details

Part number:

IPTG039N15NM5

Manufacturer:

Infineon ↗

File Size:

1.21 MB

Description:

MOSFET

Features

* N‑channel, normal level
* Very low on‑resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb‑free lead plating; RoHS compliant
* Halogen‑free according to IEC61249‑2‑21 Product validation Fully qualified according to JEDEC for

Applications

* Table 1 Parameter VDS RDS(on),max ID Qoss QG Key Performance Parameters Value Unit 150 V 3.9 mΩ 190 A 207 nC 74 nC PG‑HSOG‑8 1 2 345678 8 1 Gate Pin 1 Drain TAB Source Pin 2-8 Type/Ordering Code IPTG039N15NM5 Package PG‑HSOG‑8 Marking 039N15N5 Related Links ‑ Datasheet http
