IPTG025N10NM5, MOSFET

IPTG025N10NM5 MOSFET OptiMOSTM 5 Power-Transistor, 100 V .

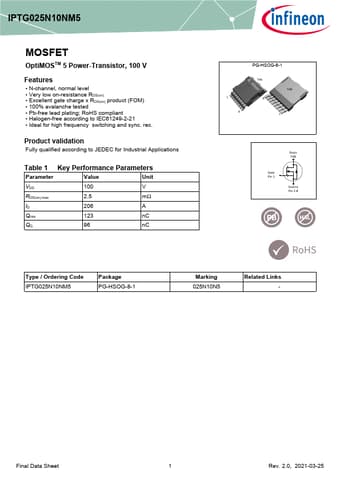

datasheet Preview Page 1 from Datasheet4u.com

IPTG025N10NM5-Infineon.pdf

IPTG025N10NM5 Datasheet Preview — Preview of IPTG025N10NM5 PDF

Datasheet Details

Part number:

IPTG025N10NM5

Manufacturer:

Infineon ↗

File Size:

1.29 MB

Description:

MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Excellent gate charge x RDS(on) product (FOM)
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Ideal for high frequency swit

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 2.5 mΩ ID 206 A Qoss 123 nC QG 96 nC 1 8 PG-HSOG-8-1 TAB TAB 8 1 Drain TAB Gate Pin 1 Source Pin 2-8 Type / Ordering Code IPTG025N10NM5 Package PG-HSOG-8-1 Marking 025N10N5 Related Links -
