IQE013N04LM6, 40V MOSFET

IQE013N04LM6 MOSFET OptiMOSTM Power-MOSFET, 40 V .

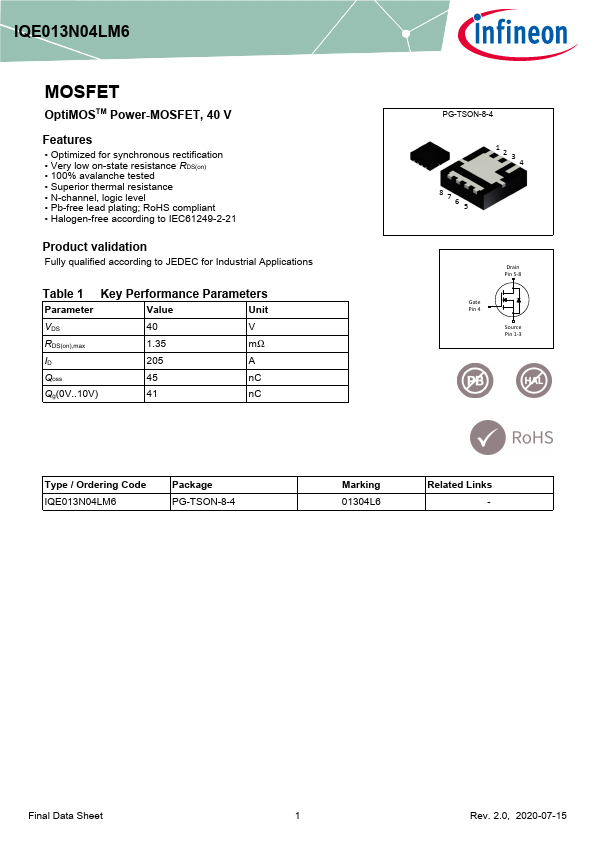

datasheet Preview Page 1 from Datasheet4u.com

IQE013N04LM6-Infineon.pdf

IQE013N04LM6 Datasheet Preview — Preview of IQE013N04LM6 PDF

Datasheet Details

Part number:

IQE013N04LM6

Manufacturer:

Infineon ↗

File Size:

1.37 MB

Description:

40V MOSFET

Features

* Optimized for synchronous rectification
* Very low on-state resistance RDS(on)
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Pro

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 40 V RDS(on),max 1.35 mΩ ID 205 A Qoss 45 nC Qg(0V. .10V) 41 nC PG-TSON-8-4 876 5 12 3 4 Drain Pin 5-8 Gate Pin 4 Source Pin 1-3 Type / Ordering Code IQE013N04LM6 Package PG-TSON-8-4 Marking 01304L6 Related Lin
