IQE013N04LM6CGSC, 40V MOSFET

IQE013N04LM6CGSC MOSFET OptiMOSTM 6 Power-Transistor, 40 V .

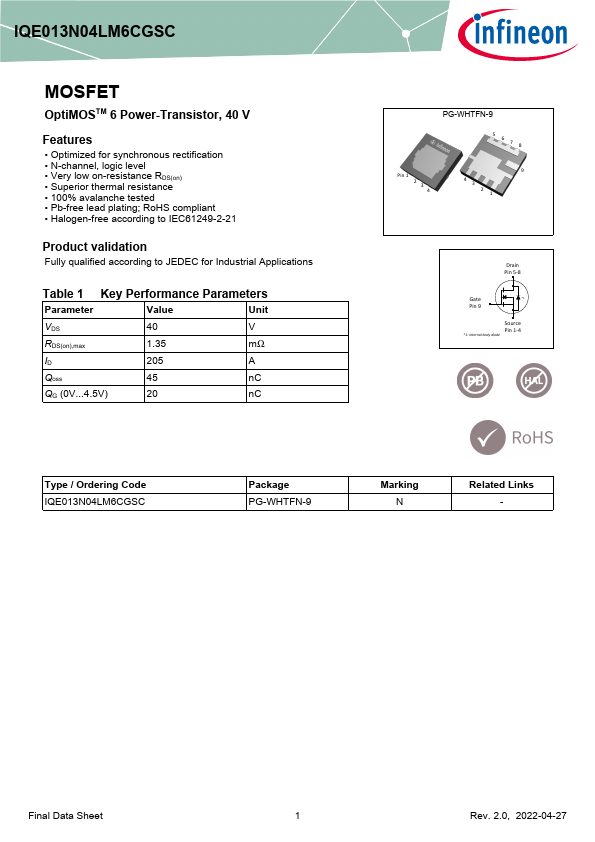

datasheet Preview Page 1 from Datasheet4u.com

IQE013N04LM6CGSC-Infineon.pdf

IQE013N04LM6CGSC Datasheet Preview — Preview of IQE013N04LM6CGSC PDF

Datasheet Details

Part number:

IQE013N04LM6CGSC

Manufacturer:

Infineon ↗

File Size:

1.55 MB

Description:

40V MOSFET

Features

* Optimized for synchronous rectification
* N-channel, logic level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product v

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 40 V RDS(on),max 1.35 mΩ ID 205 A Qoss 45 nC QG (0V4.5V) 20 nC PG-WHTFN-9 5 678 Pin 1 2 3 4 9 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 9 Source Pin 1-4
* 1: Internal body diode Type / Ordering Code IQE013N04L
