IQE022N06LM5CG 60V MOSFET

Infineon

Description

IQE022N06LM5CG MOSFET OptiMOSTM 5 Power-Transistor, 60 V .

📥 Download Datasheet

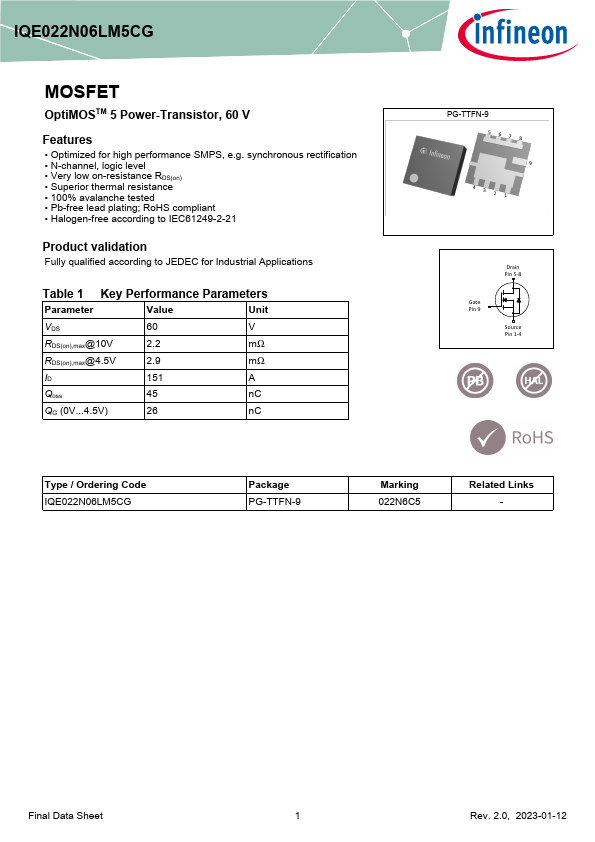

IQE022N06LM5CG Datasheet Preview — Preview of IQE022N06LM5CG PDF

Datasheet Specifications

Part number: IQE022N06LM5CG
Manufacturer: Infineon ↗
File Size: 1.13 MB
Datasheet: IQE022N06LM5CG-Infineon.pdf
Description: 60V MOSFET

Features

* Optimized for high performance SMPS, e. g. synchronous rectification
* N-channel, logic level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free accordin

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max@10V 2.2 mΩ RDS(on),max@4.5V 2.9 mΩ ID 151 A Qoss 45 nC QG (0V4.5V) 26 nC PG-TTFN-9 5 67 8 9 432 1 Drain Pin 5-8 Gate Pin 9 Source Pin 1-4 Type / Ordering Code IQE022N06LM5CG Package PG-TTFN-9 M
