ISC0702NLS 60V MOSFET

ISC0702NLS Description

ISC0702NLS MOSFET OptiMOSTM5 Power-Transistor, 60 V .

ISC0702NLS Features

* Ideal for high-frequency switching
* Optimized for charger
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Qualified for

ISC0702NLS Applications

* Product validation Qualified according to JEDEC Standard Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 2.8 mΩ ID 135 A Qoss 35 nC QG(0V. .4.5V) 21 nC Type / Ordering Code ISC0702NLS Package PG-TDSON-8 PG-TDSON-8 8 7 6 5 5 6 7 8 Pin 1 2 3 4

📥 Download Datasheet

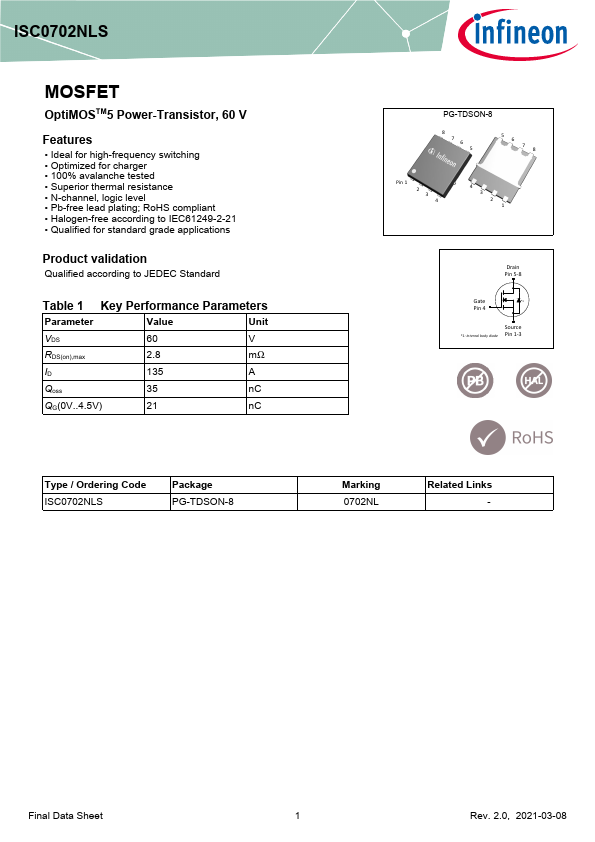

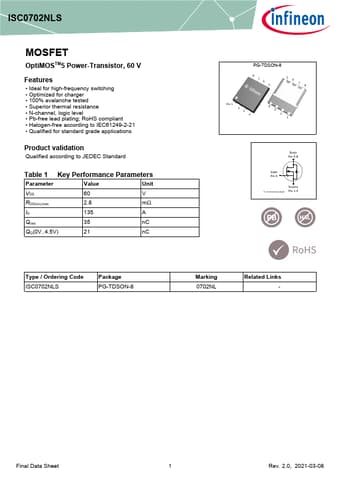

Preview of ISC0702NLS PDF

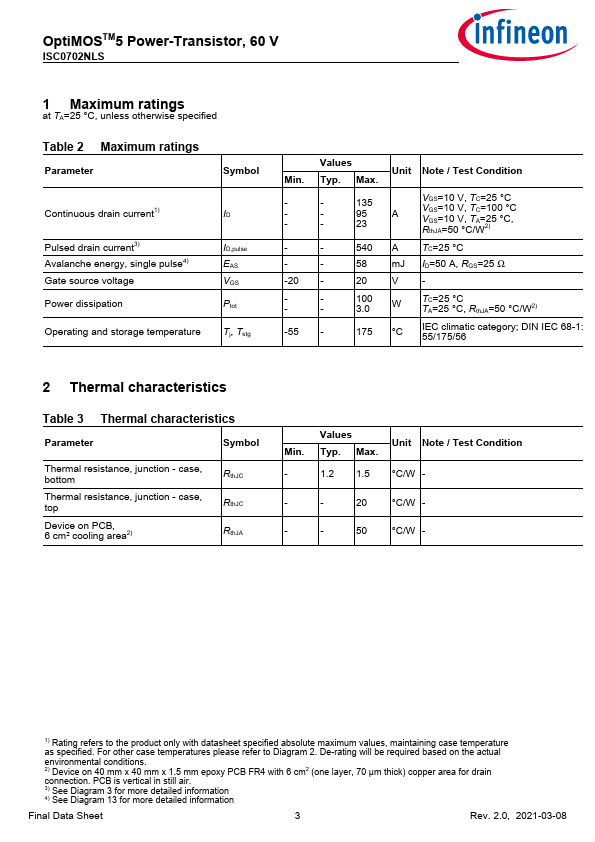

datasheet Preview Page 2 datasheet Preview Page 3
