TDA21490 - low profile dc-dc converters

Product Overview

Infineon

Datasheet preview – TDA21490

Datasheet Details

Part number	TDA21490
Manufacturer	Infineon
File Size	1.03 MB
Description	low profile dc-dc converters
Datasheet	TDA21490 Datasheet

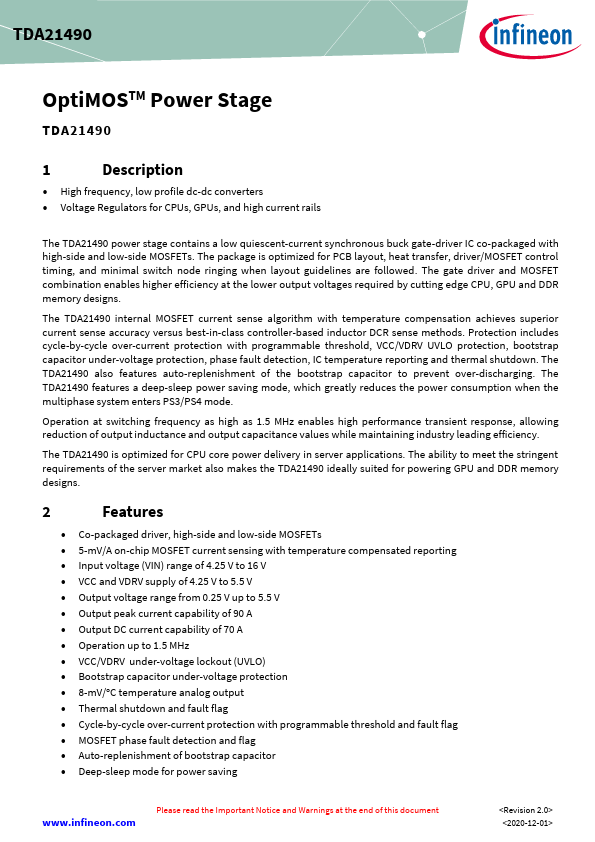

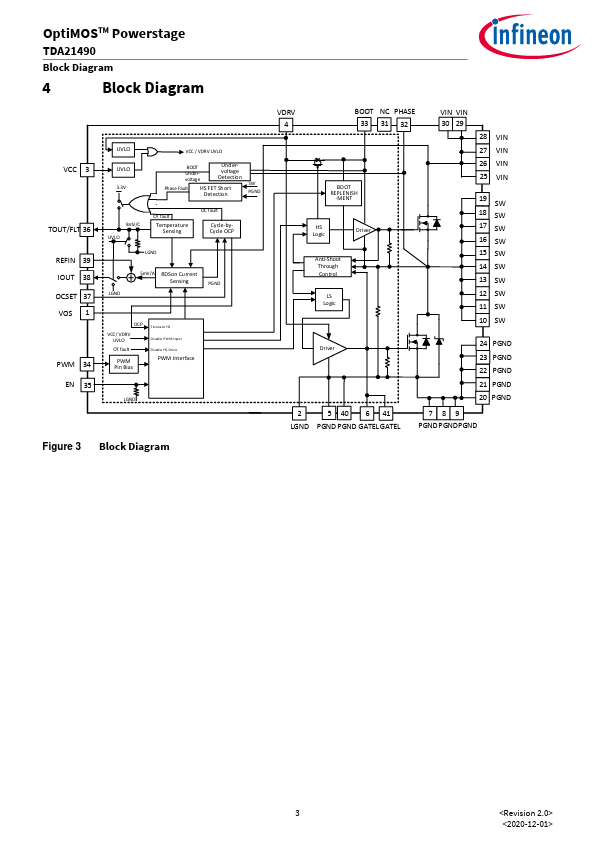

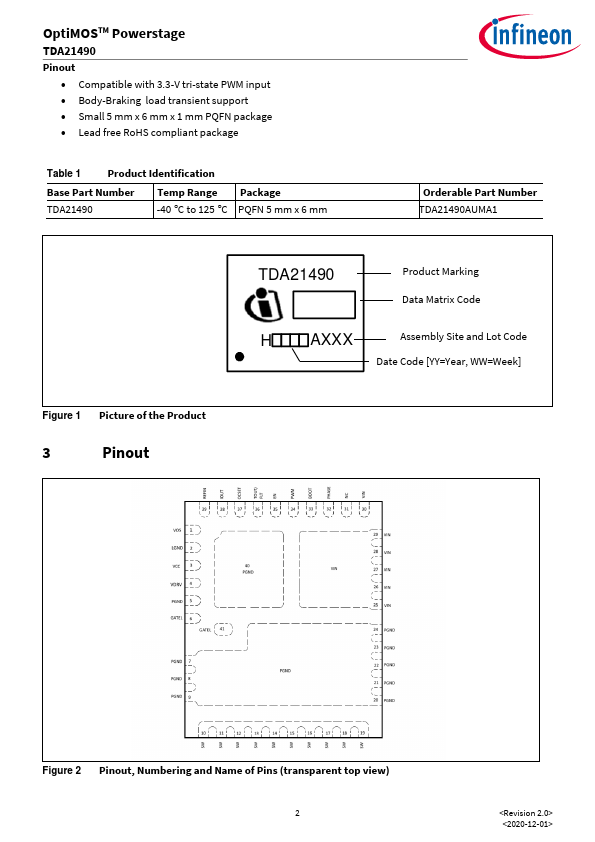

Additional preview pages of the TDA21490 datasheet.

Product details

Description

High frequency, low profile dc-dc converters Voltage Regulators for CPUs, GPUs, and high current rails The TDA21490 power stage contains a low quiescent-current synchronous buck gate-driver IC co-packaged with high-side and low-side MOSFETs.The package is optimized for PCB layout, heat transfer, driver/MOSFET control timing, and minimal switch node ringing when layout guidelines are followed.The gate driver and MOSFET combination enables higher efficiency at the lower output volt

Features

auto-replenishment of the bootstrap capacitor to prevent over-discharging. The TDA21490 features a deep-sleep power saving mode, which greatly reduces the power consumption when the multiphase system enters PS3/PS4 mode. Operation at switching frequency as high as 1.5 MHz enables high performance transient response, allowing reduction of output inductance and output capacitance values while maintaining industry leading efficiency. The TDA21490 is optimized for CPU core power delivery in server a.
