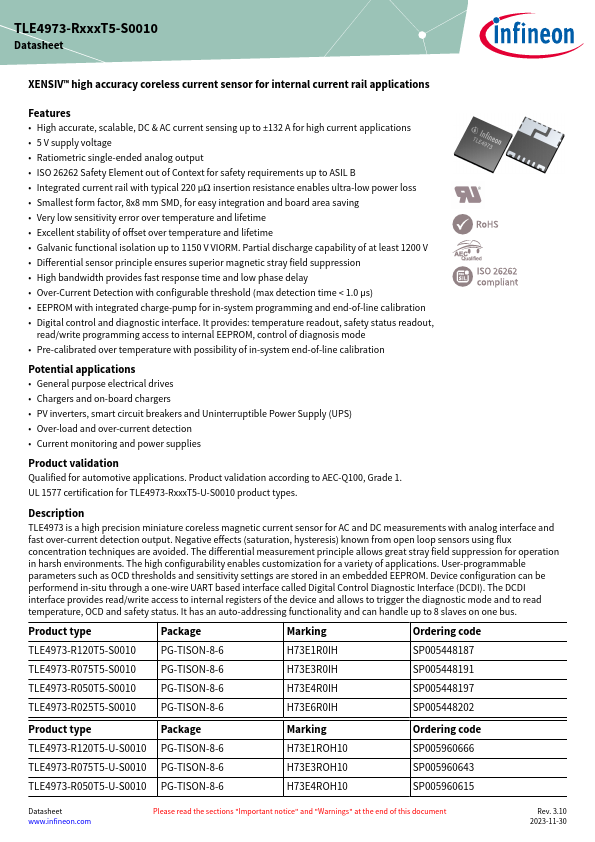

TLE4973-R120T5-S0010 Datasheet (Infineon) - high accuracy coreless current sensor

TLE4973-R120T5-S0010, high accuracy coreless current sensor

TLE4973 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and fast over-current detection output.

Negative effects (saturation, hysteresis) known from open loop sensors using flux concentration techniques are avoided.

The differential mea

TLE4973-R120T5-S0010 Features

* High accurate, scalable, DC & AC current sensing up to ±132 A for high current applications

* 5 V supply voltage

* Ratiometric single-ended analog output

* ISO 26262 Safety Element out of Context for safety requirements up to ASIL B

* Integrated current rail
