TLE75602-ESD Datasheet - Infineon

SPI Driver

TLE75602-ESD Features

* 16-bit serial peripheral interface for control and diagnosis

* Daisy Chain capability SPI also compatible with 8-bit SPI devices

* 2 CMOS compatible parallel input pins with Input Mapping functionality

* Cranking capability down to VS = 3.0 V (supports LV124)

TLE75602-ESD General Description

The TLE75602-ESD is an eight channel low-side and high-side power switch in PG-TSDSO-24 package providing embedded protective functions. It is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and diag.

TLE75602-ESD Datasheet (900.21 KB)

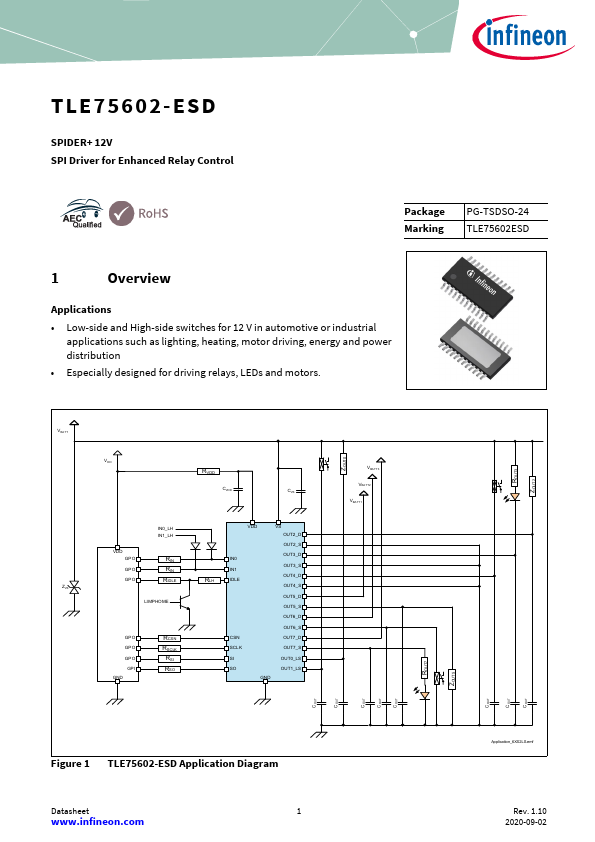

Preview of TLE75602-ESD PDF

Datasheet Details

Part number:

TLE75602-ESD

Manufacturer:

Infineon ↗

File Size:

900.21 KB

Description:

Spi driver.
TLE75602-ESD SPIDER+ 12V SPI Driver for Enhanced Relay Control Package Marking PG-TSDSO-24 TLE75602ESD 1 Overview Applications Low-side.

📁 Related Datasheet

TLE75004-ELD SPI Driver for Enhanced Relay Control (Infineon)

TLE75008-EMD SPI Driver for Enhanced Relay Control (Infineon)

TLE75008-ESD SPI Driver (Infineon)

TLE75080-EMD SPI Driver for Enhanced Relay Control (Infineon)

TLE75080-EMH SPI Driver for Enhanced Relay Control (Infineon)

TLE75080-ESH SPI Driver (Infineon)

TLE7181EM H-Bridge and Dual Half Bridge Driver (Infineon Technologies)

TLE7182EM H-Bridge and Dual Half Bridge Driver (Infineon Technologies)

TLE7183F 3-Phase Bridge Driver (Infineon Technologies)

TLE7183QU 3 Phase Driver IC (Infineon Technologies)

TAGS

TLE75602-ESD SPI Driver Infineon

Image Gallery

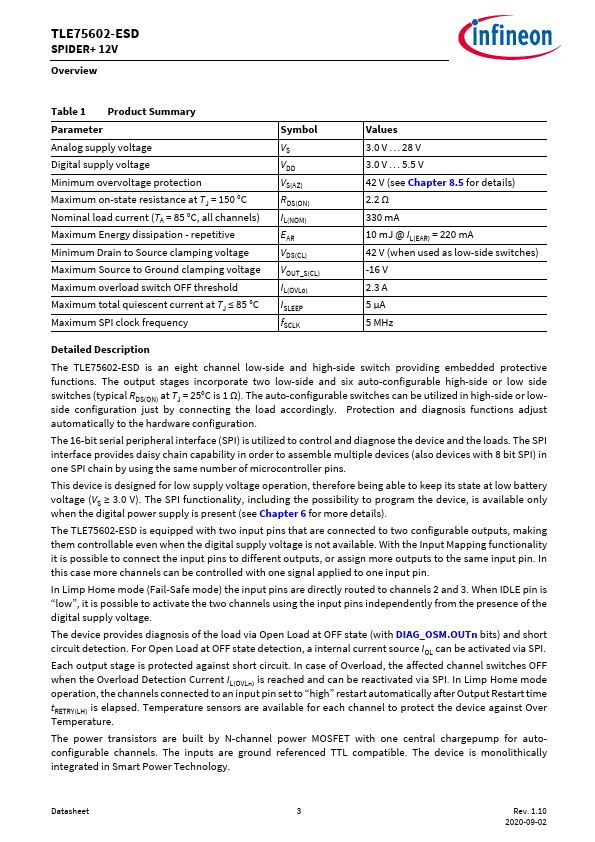

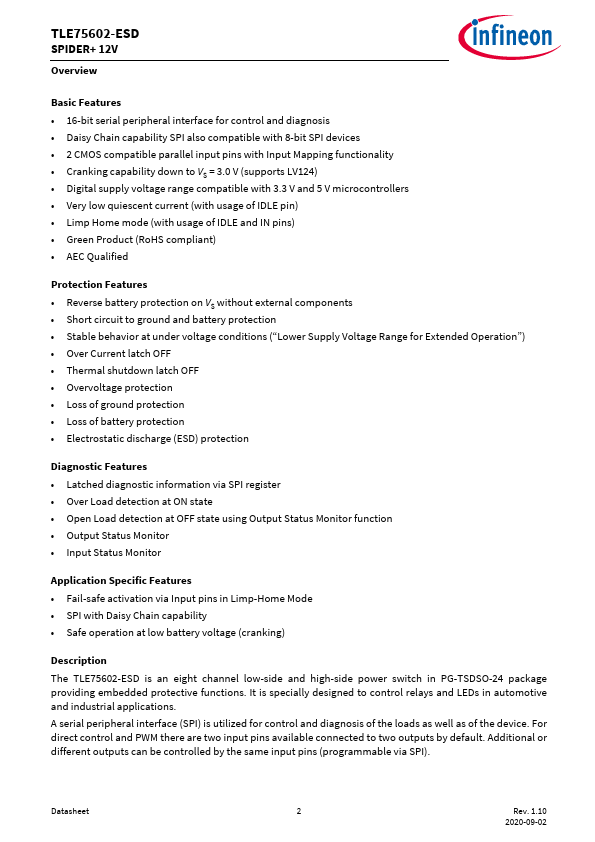

TLE75602-ESD Datasheet Preview Page 2 TLE75602-ESD Datasheet Preview Page 3
