TLE75620-EST SPI Driver

The TLE75620-EST is an eight channel configurable and high-side power switch in PG-TSDSO-24 package providing embedded protective functions. It is specially designed to control relays and LEDs in automotive and industrial applications. A serial peripheral interface (SPI) is utilized for control and .

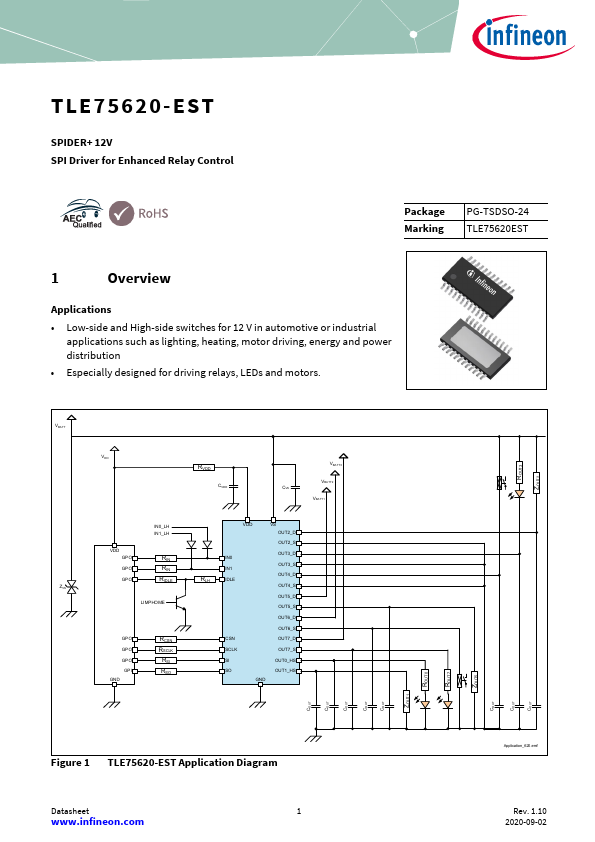

TLE75620-EST SPIDER+ 12V SPI Driver for Enhanced Relay Control Package Marking PG-TSDSO-24 TLE75620EST 1 Overview Applications Low-side and High-side switches for 12 V in automotive or industrial applications such as lighting, heating, motor driving, energy and power distribution Especially designed for driving relays, LEDs and motors. VBA TT ZVS VD D VDD GP O GP O GP O IN0_LH IN1_LH RIN RIN RIDLE LI MP HO ME GP O GP O GP O GP I GND RCSN RSCLK RSI RSO RVDD CVD D .

TLE75620-EST Features

* 16-bit serial peripheral interface for control and diagnosis

* Daisy Chain capability SPI also compatible with 8-bit SPI devices

* 2 CMOS compatible parallel input pins with Input Mapping functionality

* Cranking capability down to VS = 3.0 V (supports LV124)

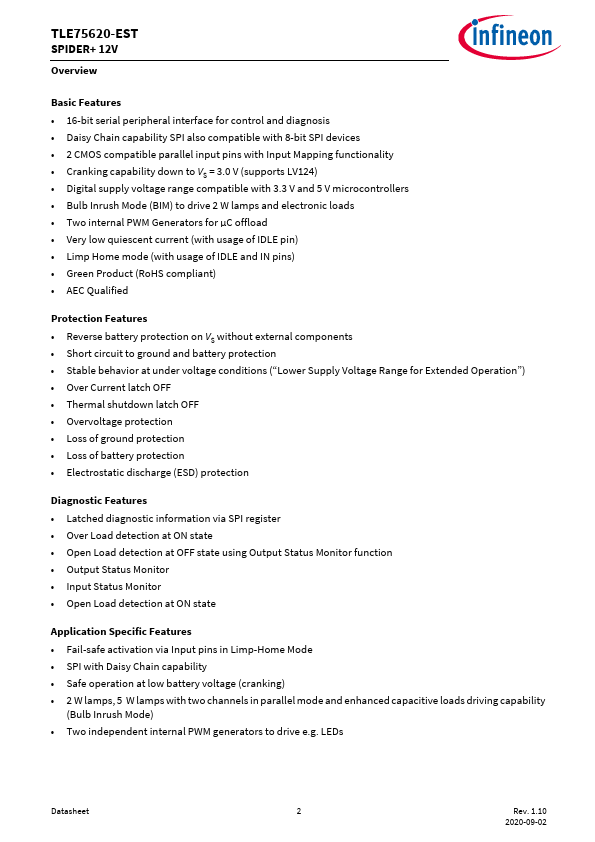

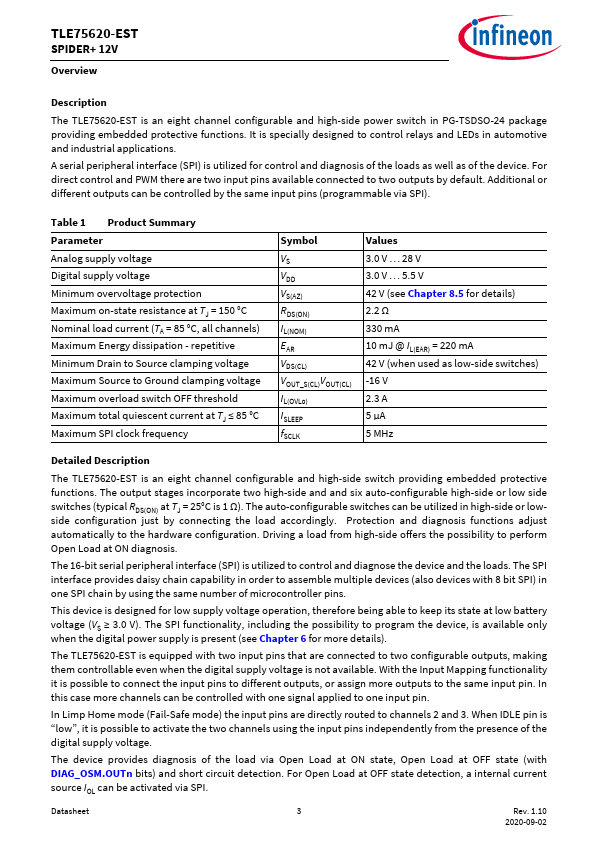

TLE75620-EST Datasheet (0.96 MB)
