TLE75602-ESH - SPI Driver

Infineon

📥 Download Datasheet

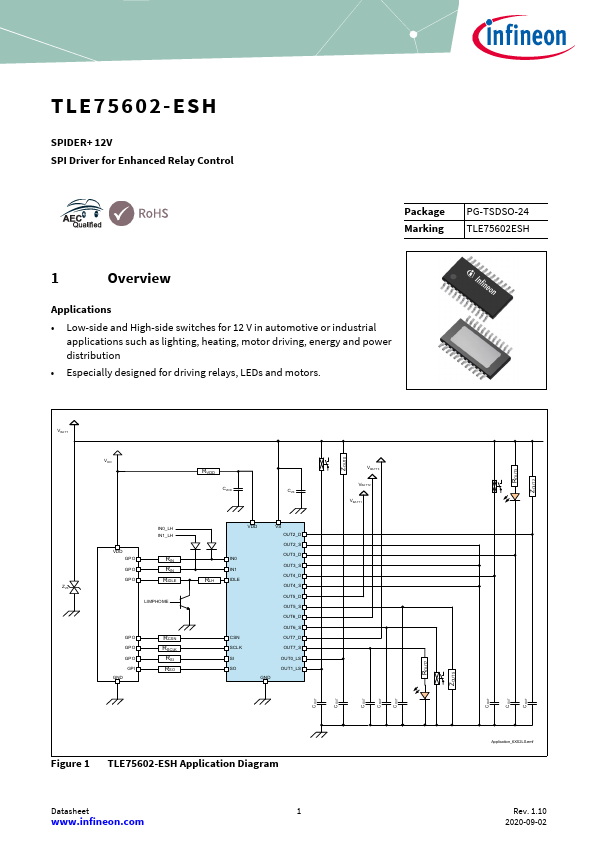

TLE75602-ESH Datasheet Preview — Preview of TLE75602-ESH PDF

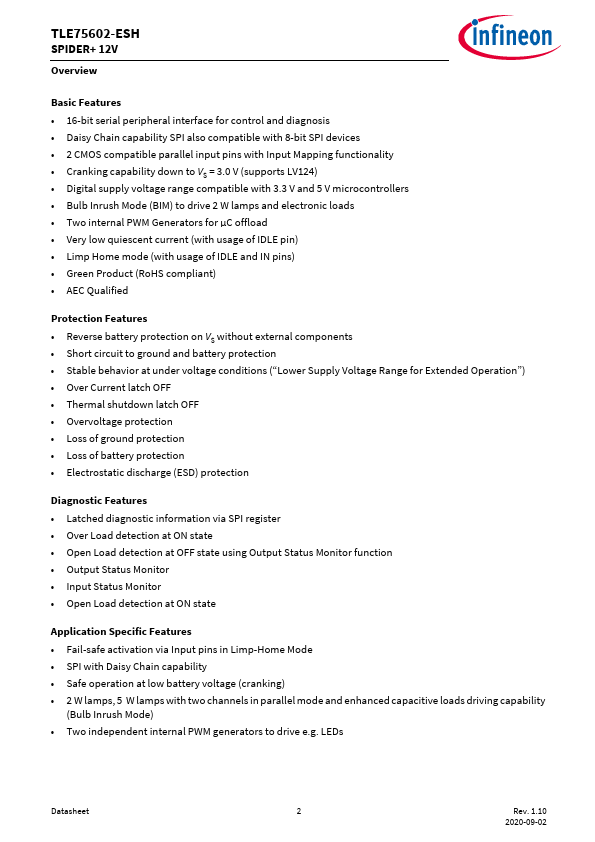

datasheet Preview Page 2

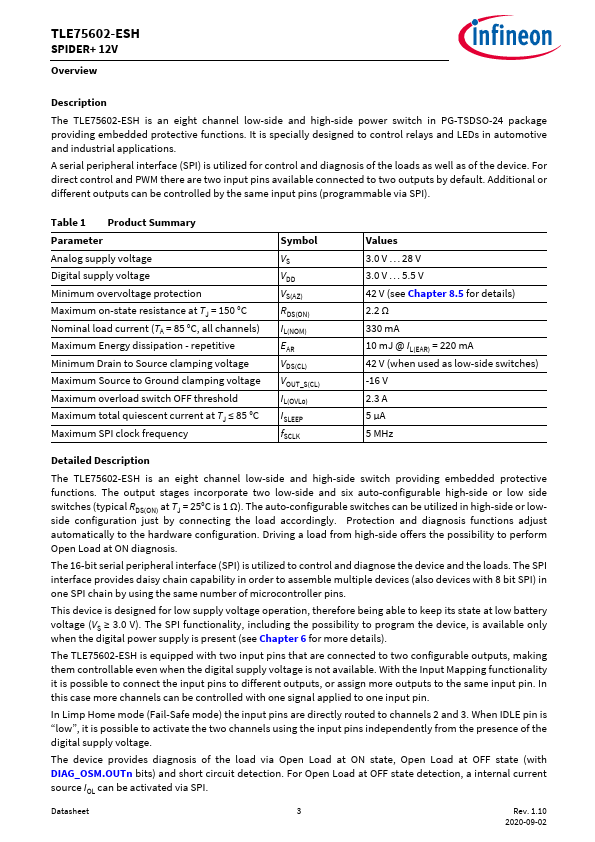

datasheet Preview Page 3

Datasheet Details

Part number	TLE75602-ESH
Manufacturer	Infineon
File Size	0.97 MB
Description	SPI Driver
Datasheet	TLE75602-ESH-Infineon.pdf

TLE75602-ESH Product details

Description

The TLE75602-ESH is an eight channel low-side and high-side power switch in PG-TSDSO-24 package providing embedded protective functions.

Features

16-bit serial peripheral interface for control and diagnosis.
Daisy Chain capability SPI also compatible with 8-bit SPI devices.
2 CMOS compatible parallel input pins with Input Mapping functionality.
Cranking capability down to VS = 3.0 V (supports LV124).
Digital supply voltage range compatible with 3.3 V and 5 V microcontrollers.
Bulb Inrush Mode (BIM) to drive 2 W lamps and electronic loads.
Two internal PWM Generators for µC of.
