TLE92104-131, Multiple MOSFET Driver

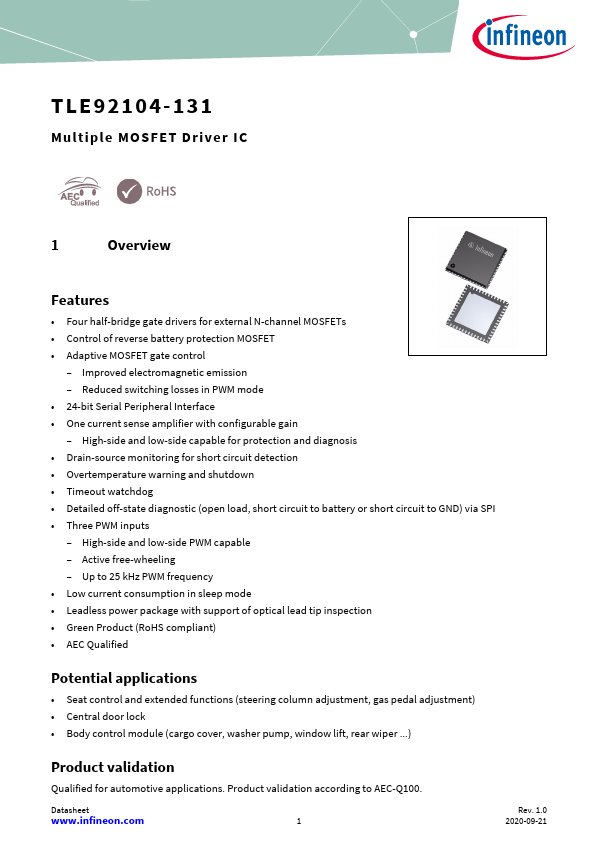

TLE92104-131 Multiple MOSFET Driver IC 1 Overview .

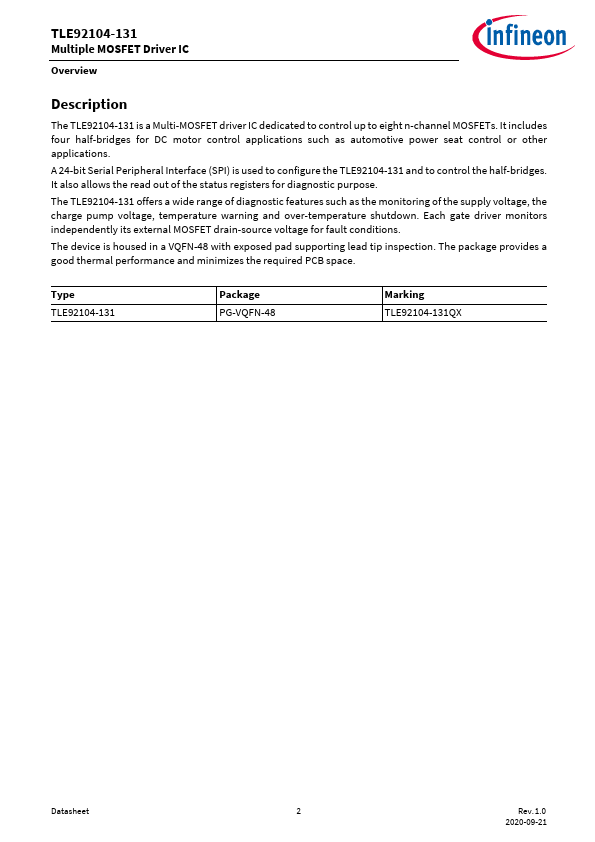

The TLE92104-131 is a Multi-MOSFET driver IC dedicated to control up to eight n-channel MOSFETs.

datasheet Preview Page 1 from Datasheet4u.com

TLE92104-131-Infineon.pdf

TLE92104-131 Datasheet Preview — Preview of TLE92104-131 PDF

Datasheet Details

Part number:

TLE92104-131

Manufacturer:

Infineon ↗

File Size:

1.44 MB

Description:

Multiple MOSFET Driver

Features

* Four half-bridge gate drivers for external N-channel MOSFETs
* Control of reverse battery protection MOSFET
* Adaptive MOSFET gate control
* Improved electromagnetic emission
* Reduced switching losses in PWM mode
* 24-bit Serial Peripheral Interface

Applications

* Seat control and extended functions (steering column adjustment, gas pedal adjustment)
* Central door lock
* Body control module (cargo cover, washer pump, window lift, rear wiper ) Product validation Qualified for automotive applications. Product validation according to
