TLE9241QU Datasheet - Infineon

TLE9241QU - Transmission IO IC

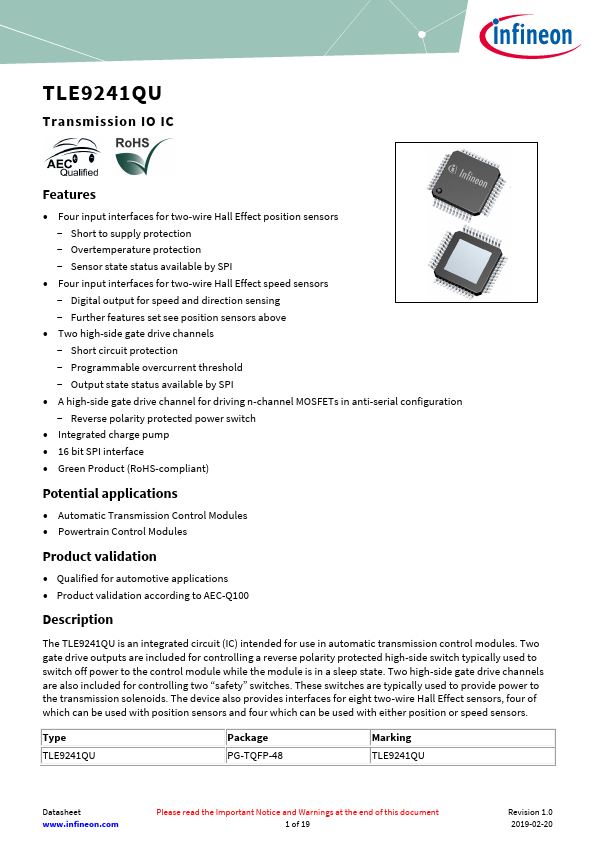

The TLE9241QU is an integrated circuit (IC) intended for use in automatic transmission control modules.

Two gate drive outputs are included for controlling a reverse polarity protected high-side switch typically used to switch off power to the control module while the module is in a sleep state.

Tw

TLE9241QU Features

* Four input interfaces for two-wire Hall Effect position sensors

* Short to supply protection

* Overtemperature protection

* Sensor state status available by SPI

* Four input interfaces for two-wire Hall Effect speed sensors

* Digital output for speed and dir

TLE9241QU-Infineon.pdf

Preview of TLE9241QU PDF

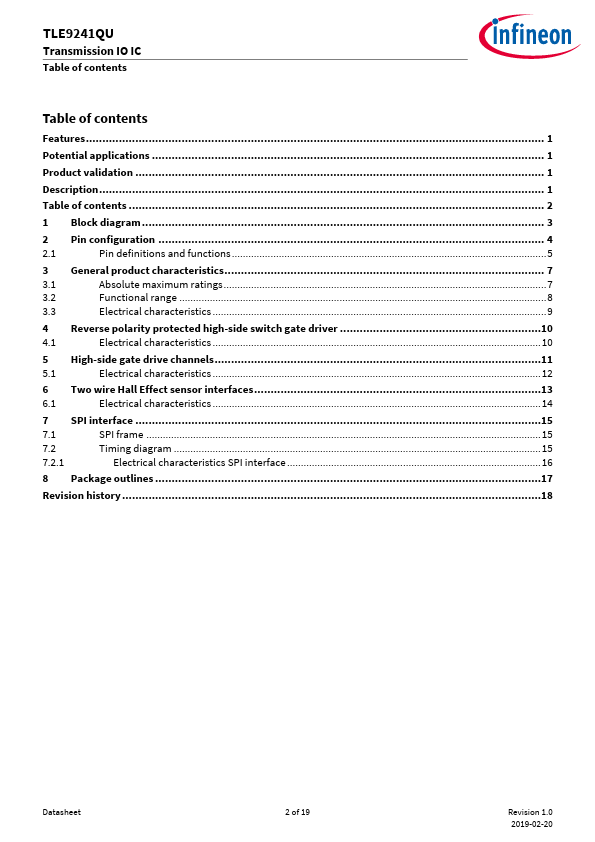

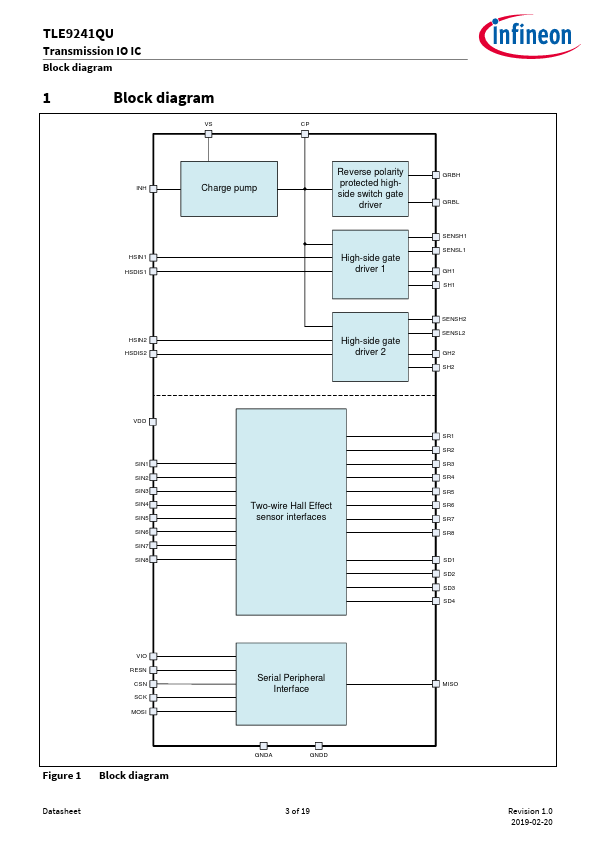

TLE9241QU Datasheet Preview Page 2 TLE9241QU Datasheet Preview Page 3

Datasheet Details

Part number:

TLE9241QU

Manufacturer:

Infineon ↗

File Size:

1.11 MB

Description:

Transmission io ic.
