TLE92104-232 - Multiple MOSFET Driver

TLE92104-232 Description

TLE92104-232 Multiple MOSFET Driver IC 1 Overview .
The TLE92104-232 is a Multi-MOSFET driver IC dedicated to control up to eight n-channel MOSFETs.

TLE92104-232 Features

* Four half-bridge gate drivers for external N-channel MOSFETs
* Control of reverse battery protection MOSFET
* Adaptive MOSFET gate control
* Improved electromagnetic emission
* Reduced switching losses in PWM mode
* 24-bit Serial Peripheral Interface

TLE92104-232 Applications

* Seat control and extended functions (steering column adjustment, gas pedal adjustment)
* Power lift gate
* Central door lock
* Body control module (cargo cover, washer pump, window lift, rear wiper ) Datasheet www. infineon. com 1 Rev. 1.0 2020-09-21 TLE92104-232

📥 Download Datasheet

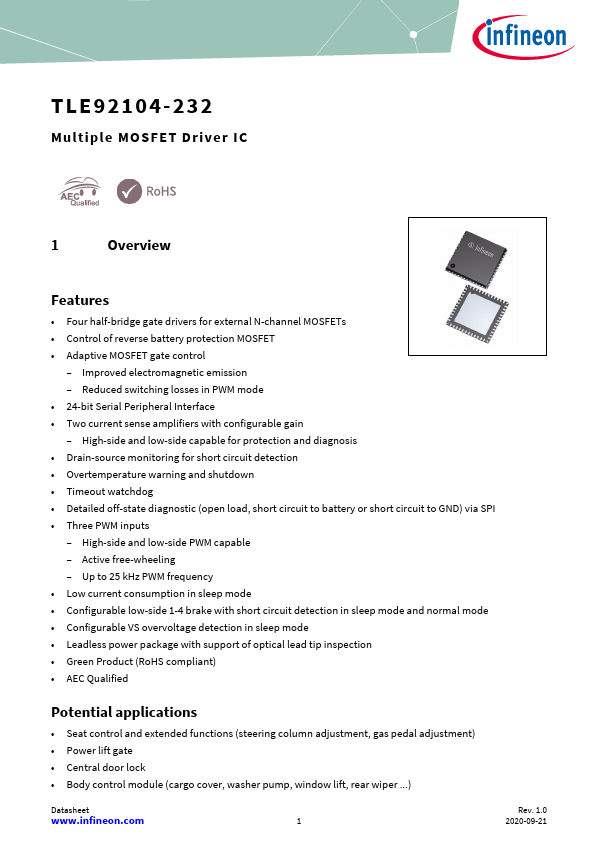

Preview of TLE92104-232 PDF

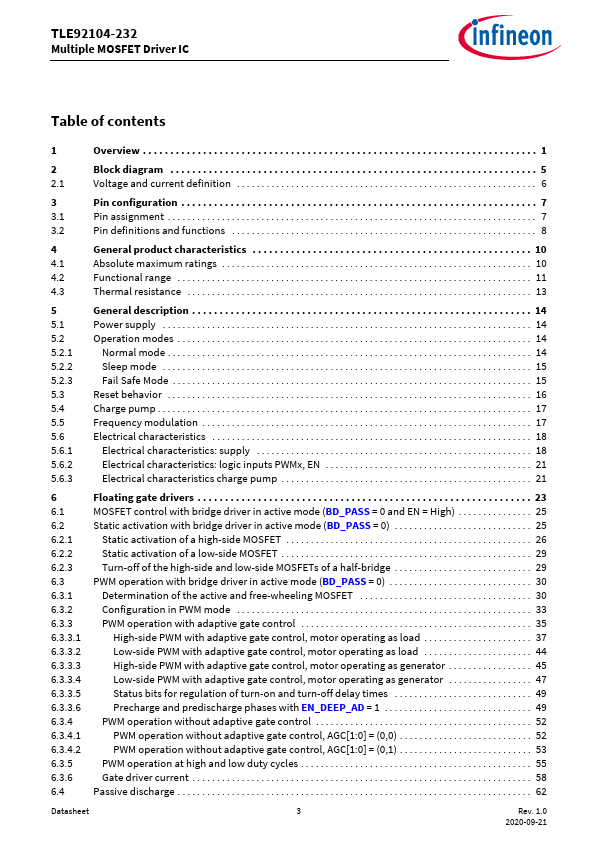

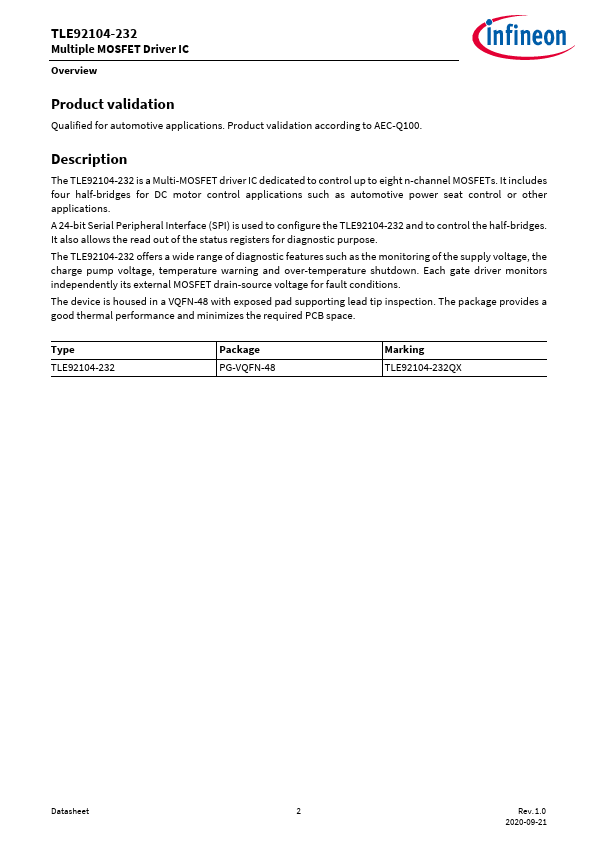

datasheet Preview Page 2 datasheet Preview Page 3
