TLE9222 FlexRay Transceiver

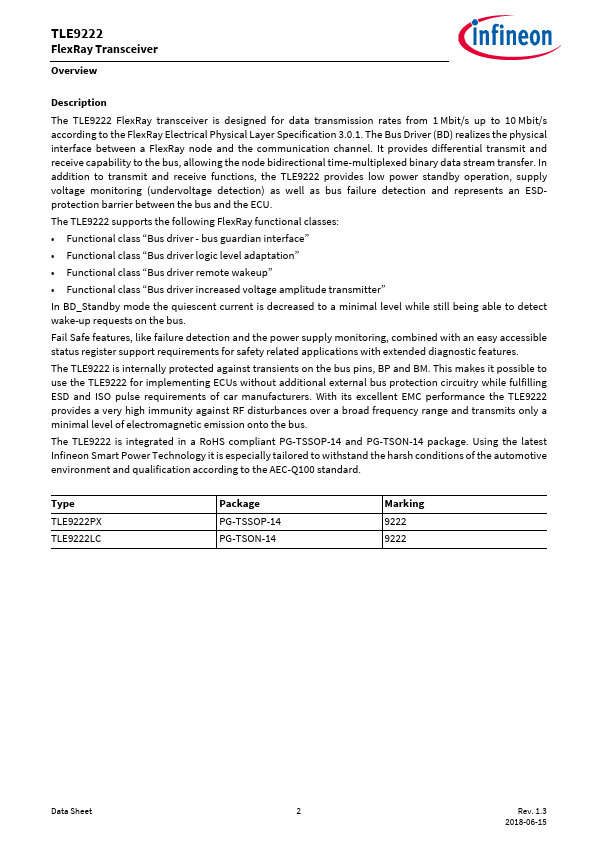

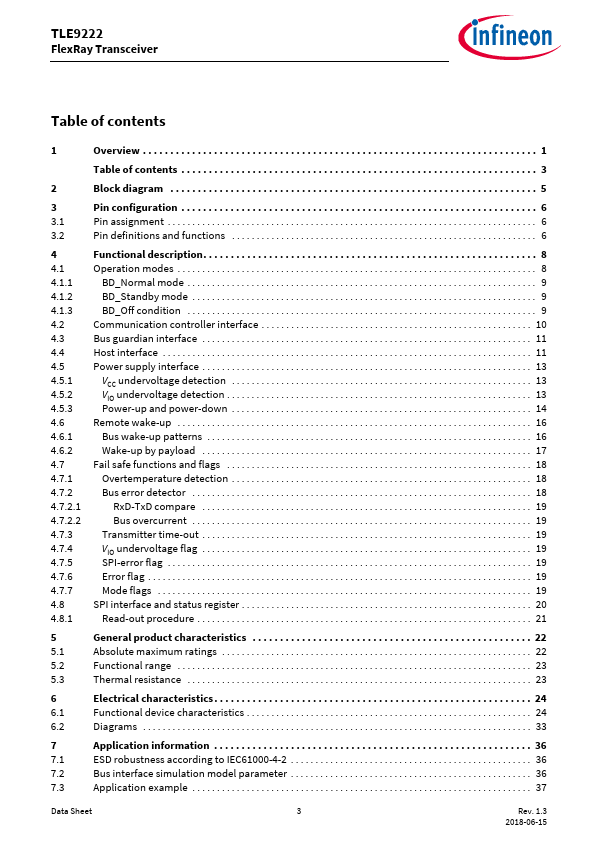

TLE9222 TLE9222PX FlexRay Transceiver Data Sheet Rev. 1.0, 2015-06-12 Automotive Power TLE9222 Table of Contents 1 2 3 3.1 3.2 4 4.1 4.1.1 4.1.2 4.1.3 4.2 4.3 4.4 4.5 4.5.1 4.5.2 4.5.3 4.6 4.6.1 4.6.2 4.7 4.7.1 4.7.2 4.7.2.1 4.7.2.2 4.7.3 4.7.4 4.7.5 4.7.6 4.7.7 4.8 4.8.1 5 5.1 5.2 5.3 6 6.1 6.2 7 7.1 7.2 7.3 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Block Diagram . . . . . . . . .

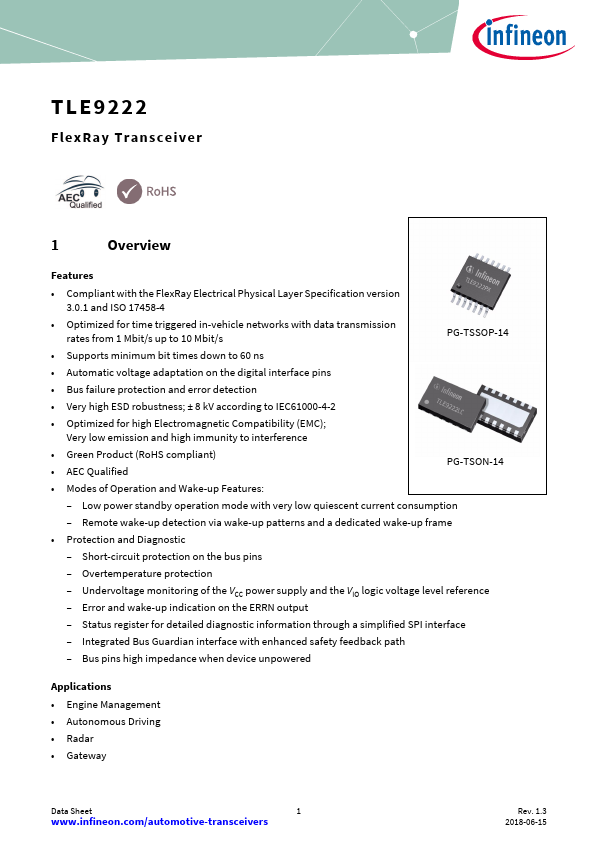

TLE9222 Features

* Compliant with the FlexRay Electrical Physical Layer Specification version 3.0.1 and ISO 17458-4

* Optimized for time triggered in-vehicle networks with data transmission rates from 1 Mbit/s up to 10 Mbit/s

* Supports minimum bit times down to 60 ns

* Automatic volt

TLE9222 Datasheet (882.43 KB)
