TLE9250 High Speed CAN FD Transceiver

TLE9250 Description

TLE9250 High Speed CAN FD Transceiver 1 Overview .
Type TLE9250LE TLE9250SJ Package PG-TSON-8 PG-DSO-8 Marking 9250 9250 The TLE9250 is the latest Infineon high-speed CAN transceiver generation, us.

TLE9250 Features

* Fully compliant to ISO 11898-2 (2016) and SAE J2284-4/-5
* Reference device and part of Interoperability Test Specification for CAN Transceiver PG-TSON-8
* Guaranteed loop delay symmetry for CAN FD data frames up to 5 MBit/s
* Very low electromagnetic emission (

TLE9250 Applications

* Engine Control Unit (ECUs)
* Electric Power Steering
* Transmission Control Units (TCUs)
* Chassis Control Modules Product validation Qualified for automotive applications. Product validation according to AEC-Q100. Datasheet 1 www. infineon. com/automotive-transce

📥 Download Datasheet

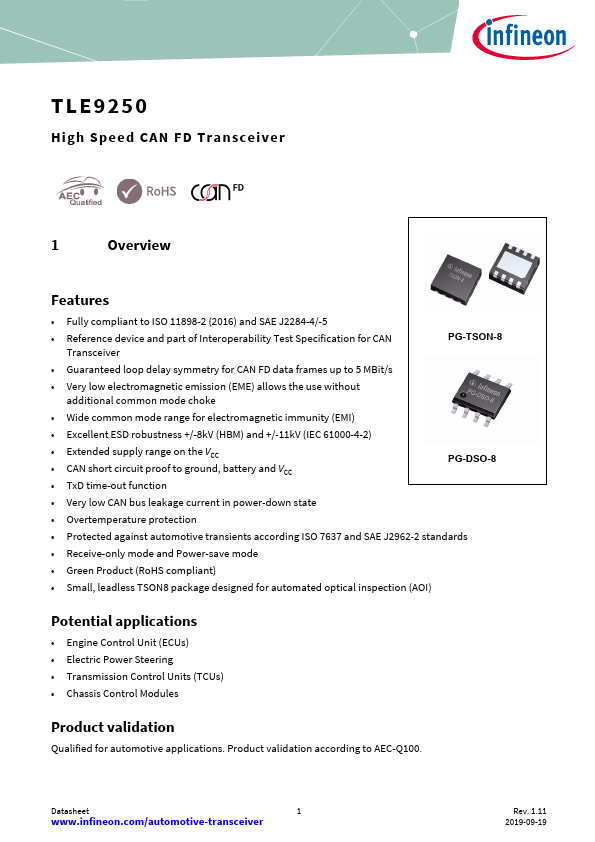

Preview of TLE9250 PDF
datasheet Preview Page 2 datasheet Preview Page 3
