TLE9255W - HS CAN Transceiver

Name: TLE9255W
SKU: TLE9255W-1578134

Infineon

📥 Download Datasheet

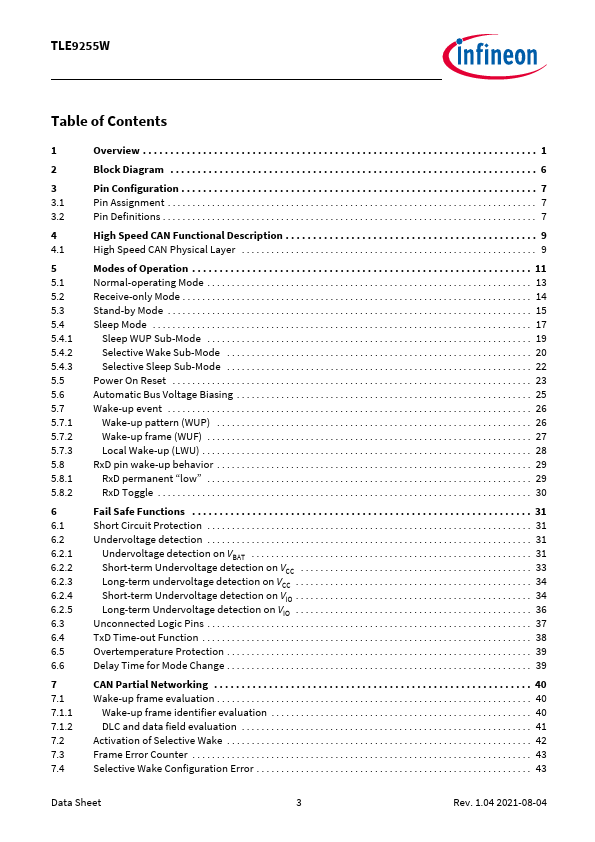

TLE9255W Datasheet Preview — Preview of TLE9255W PDF

Datasheet Details

Part number	TLE9255W
Manufacturer	Infineon
File Size	1.58 MB
Description	HS CAN Transceiver
Datasheet	TLE9255W-Infineon.pdf

TLE9255W Product details

Description

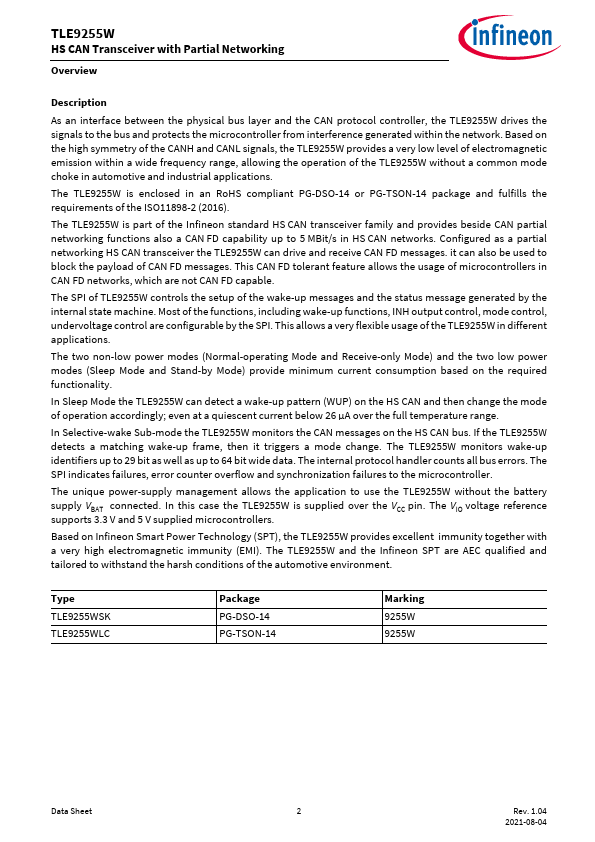

As an interface between the physical bus layer and the CAN protocol controller, the TLE9255W drives the signals to the bus and protects the microcontroller from interference generated within the network.

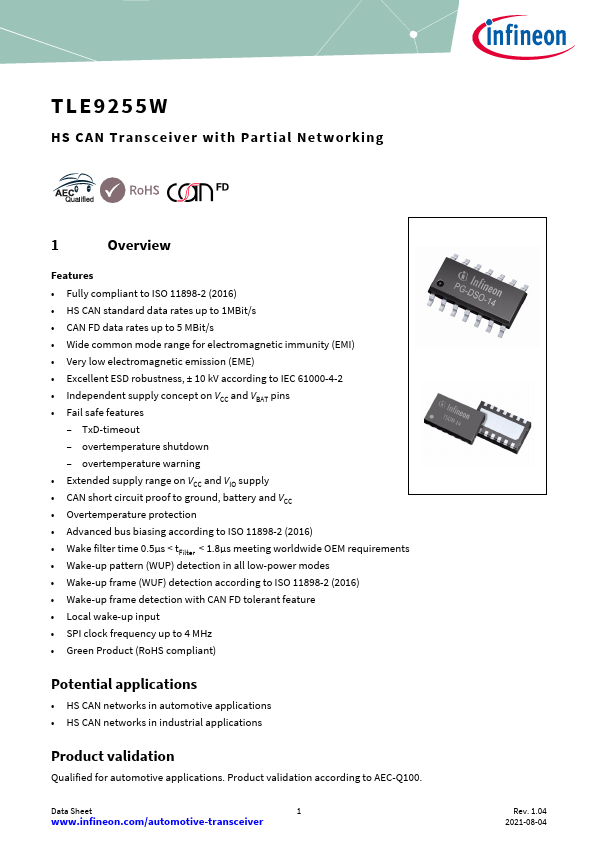

Features

Fully compliant to ISO 11898-2 (2016).
HS CAN standard data rates up to 1MBit/s.
CAN FD data rates up to 5 MBit/s.
Wide common mode range for electromagnetic immunity (EMI).
Very low electromagnetic emission (EME).
Excellent ESD robustness, ± 10 kV according to IEC 61000-4-2.
Independent supply concept on VCC and VBAT pins.
Fail safe features.
TxD-timeout.
overtemperature shutdown.
overtemperature.
