TLT125D0EJ - linear voltage regulator

Infineon

📥 Download Datasheet

TLT125D0EJ Datasheet Preview — Preview of TLT125D0EJ PDF

Datasheet Details

Part number	TLT125D0EJ
Manufacturer	Infineon
File Size	2.16 MB
Description	linear voltage regulator
Datasheet	TLT125D0EJ-Infineon.pdf

TLT125D0EJ Product details

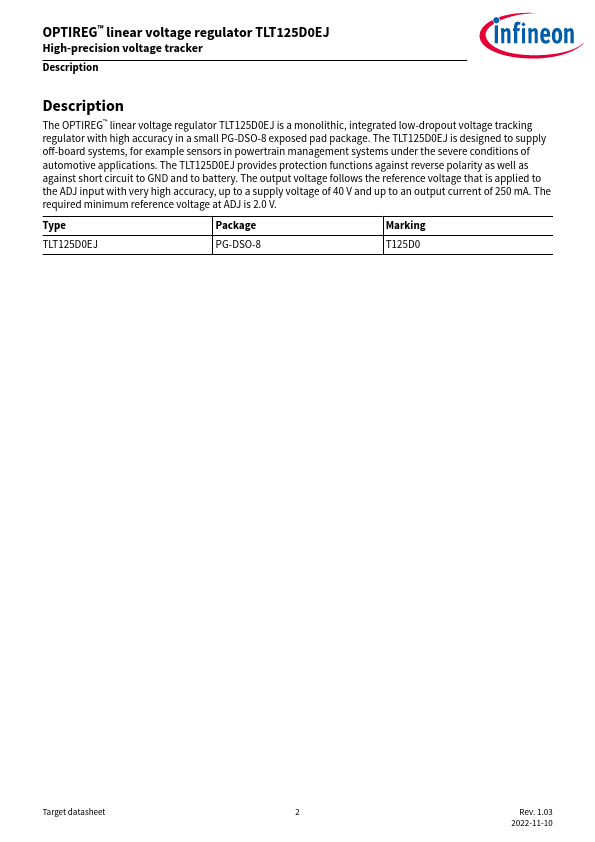

Description

Description The OPTIREG™ linear voltage regulator TLT125D0EJ is a monolithic, integrated low-dropout voltage tracking regulator with high accuracy in a small PG-DSO-8 exposed pad package.The TLT125D0EJ is designed to supply off-board systems, for example sensors in powertrain management systems under the severe conditions of automotive applications.The TLT125D0EJ provides protection functions against reverse polarity as well as against short circuit to GND and to battery.The output voltage

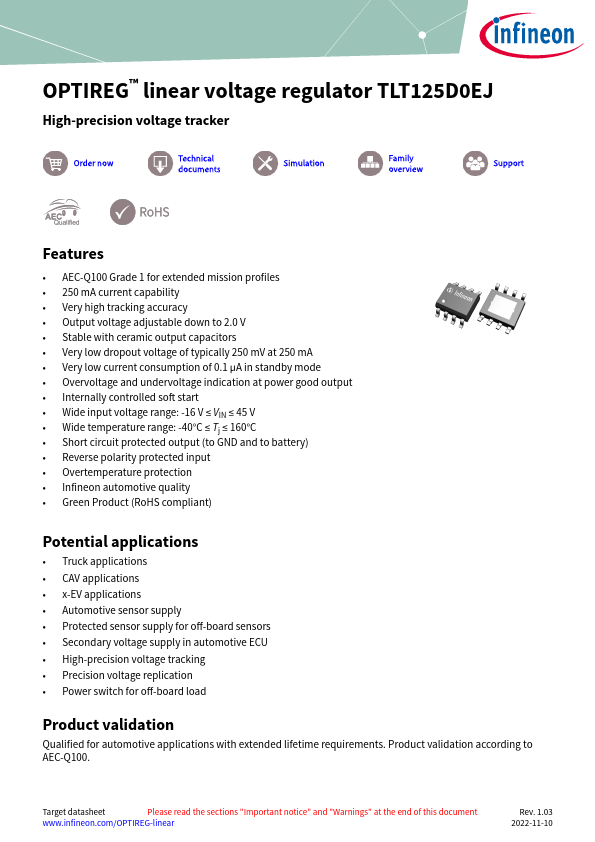

Features

AEC-Q100 Grade 1 for extended mission profiles.
250 mA current capability.
Very high tracking accuracy.
Output voltage adjustable down to 2.0 V.
Stable with ceramic output capacitors.
Very low dropout voltage of typically 250 mV at 250 mA.
Very low current consumption of 0.1 µA in standby mode.
Overvoltage and undervoltage indication at power good output.
Internally controlled soft start.
Wide input voltag.
