TLT9255WLC - HS CAN Transceiver

Name: TLT9255WLC
SKU: TLT9255WLC-1578507

Infineon

📥 Download Datasheet

TLT9255WLC Datasheet Preview — Preview of TLT9255WLC PDF

Datasheet Details

Part number	TLT9255WLC
Manufacturer	Infineon
File Size	1.28 MB
Description	HS CAN Transceiver
Datasheet	TLT9255WLC-Infineon.pdf

TLT9255WLC Product details

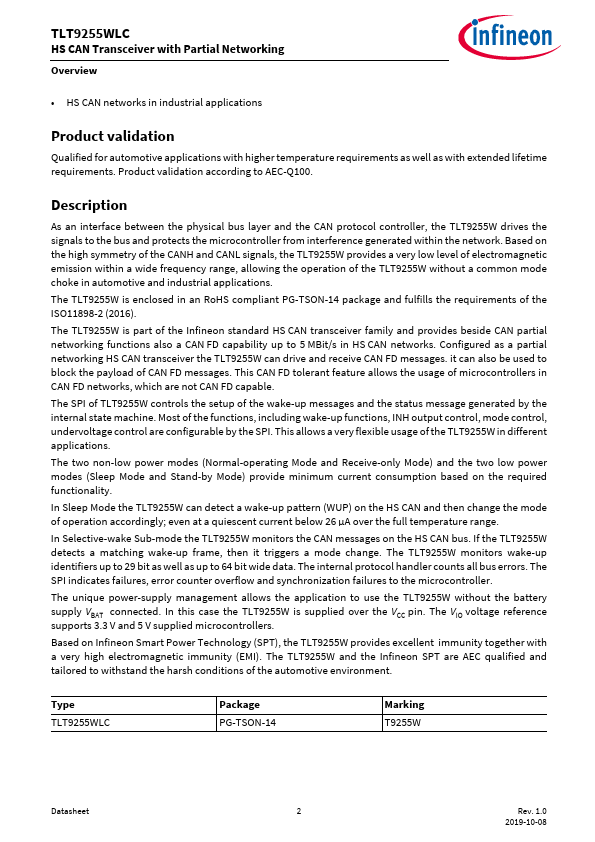

Description

As an interface between the physical bus layer and the CAN protocol controller, the TLT9255W drives the signals to the bus and protects the microcontroller from interference generated within the network.

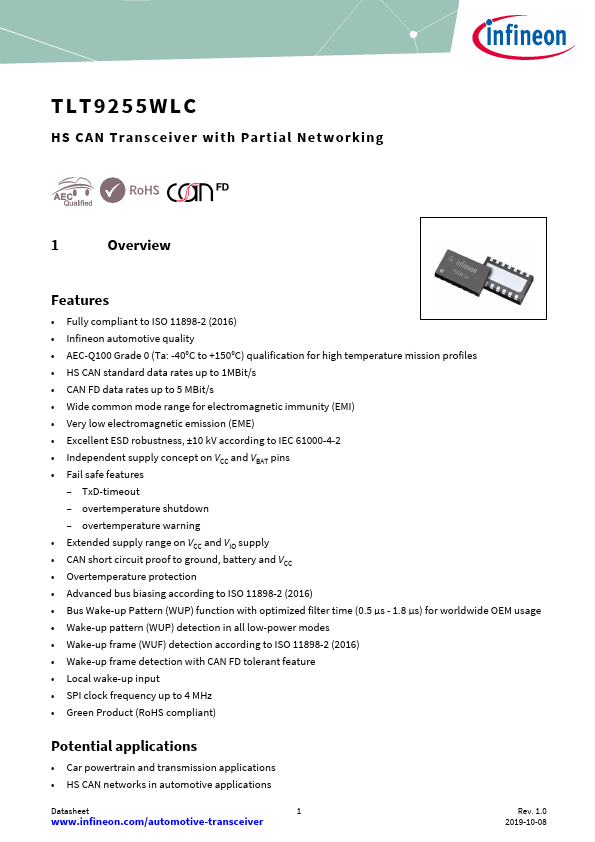

Features

Fully compliant to ISO 11898-2 (2016).
Infineon automotive quality.
AEC-Q100 Grade 0 (Ta: -40°C to +150°C) qualification for high temperature mission profiles.
HS CAN standard data rates up to 1MBit/s.
CAN FD data rates up to 5 MBit/s.
Wide common mode range for electromagnetic immunity (EMI).
Very low electromagnetic emission (EME).
Excellent ESD robustness, ±10 kV according to IEC 61000-4-2.
Independent supply co.
