TLT9252VLC, High-Speed CAN FD Transceiver

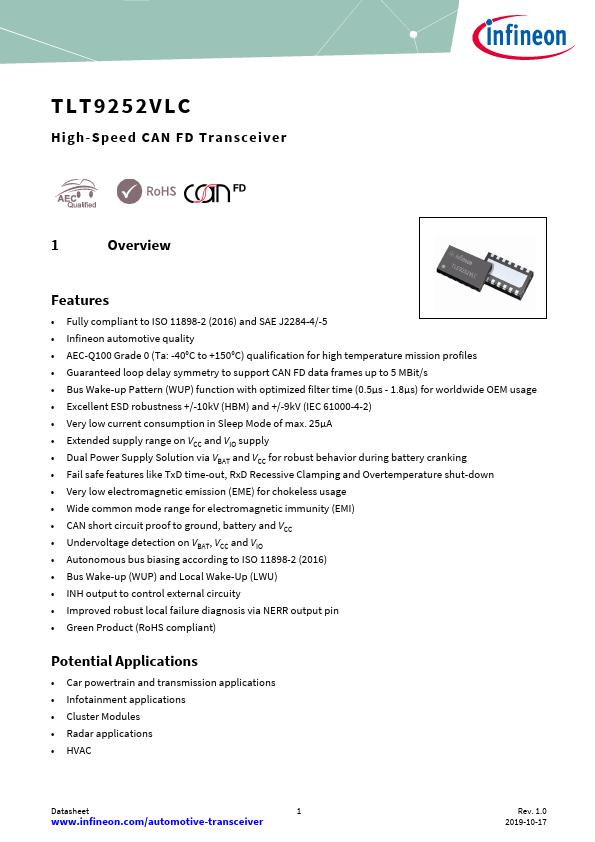

TLT9252VLC High-Speed CAN FD Transceiver 1 Overview .
The TLT9252VLC is a transceiver designed for HS CAN networks up to 5 Mbit/s in automotive and industrial applications.

TLT9252VLC-Infineon.pdf

TLT9252VLC Datasheet Preview — Preview of TLT9252VLC PDF

Datasheet Details

Part number:

TLT9252VLC

Manufacturer:

Infineon ↗

File Size:

626.48 KB

Description:

High-Speed CAN FD Transceiver

Features

* Fully compliant to ISO 11898-2 (2016) and SAE J2284-4/-5
* Infineon automotive quality
* AEC-Q100 Grade 0 (Ta: -40°C to +150°C) qualification for high temperature mission profiles
* Guaranteed loop delay symmetry to support CAN FD data frames up to 5 MBit/s

Applications

* Car powertrain and transmission applications
* Infotainment applications
* Cluster Modules
* Radar applications
* HVAC Datasheet 1 www. infineon. com/automotive-transceiver Rev. 1.0 2019-10-17 TLT9252VLC High-Speed CAN FD Transceiver Overview Product val
