TLT9251VLE - High Speed CAN FD Transceiver

Infineon

📥 Download Datasheet

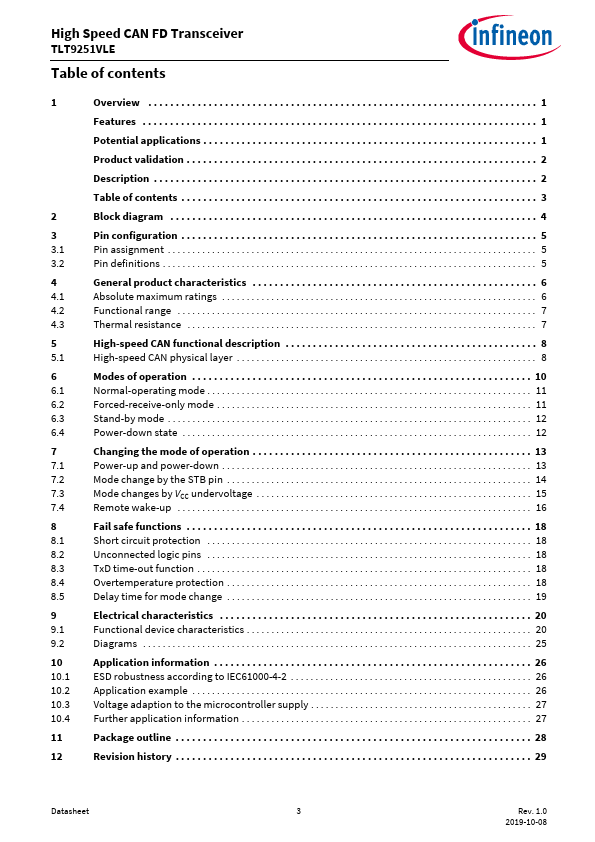

TLT9251VLE Datasheet Preview — Preview of TLT9251VLE PDF

Datasheet Details

Part number	TLT9251VLE
Manufacturer	Infineon
File Size	490.45 KB
Description	High Speed CAN FD Transceiver
Datasheet	TLT9251VLE-Infineon.pdf

TLT9251VLE Product details

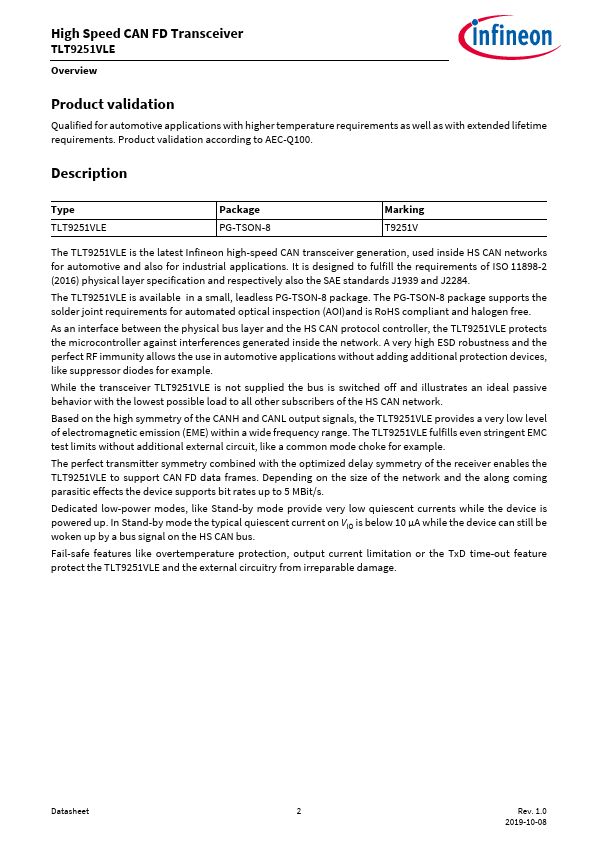

Description

Type TLT9251VLE Package PG-TSON-8 Marking T9251V The TLT9251VLE is the latest Infineon high-speed CAN transceiver generation, used inside HS CAN networks for automotive and also for industrial applications.It is designed to fulfill the requirements of ISO 11898-2 (2016) physical layer specification and respectively also the SAE standards J1939 and J2284. The TLT9251VLE is available in a small, leadless PG-TSON-8 package.The PG-TSON-8 package supports the solder joint requirements for autom

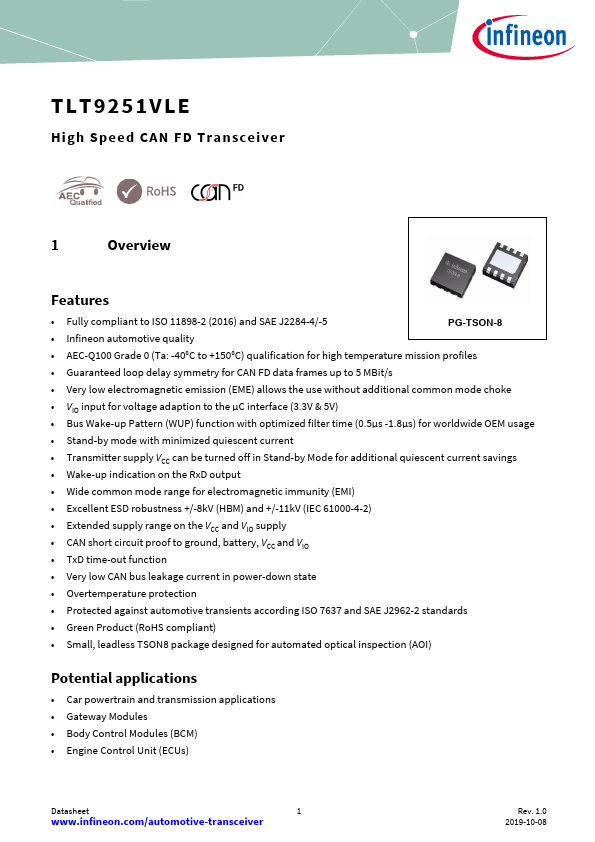

Features

Fully compliant to ISO 11898-2 (2016) and SAE J2284-4/-5 PG-TSON-8.
Infineon automotive quality.
AEC-Q100 Grade 0 (Ta: -40°C to +150°C) qualification for high temperature mission profiles.
Guaranteed loop delay symmetry for CAN FD data frames up to 5 MBit/s.
Very low electromagnetic emission (EME) allows the use without additional common mode choke.
VIO input for voltage adaption to the µC interface (3.3V & 5V).
Bus Wake-up P.
