IP2163H - Fast Charging Physical Layer

Product Overview

Injoinic

Datasheet Details

Part number	IP2163H
Manufacturer	Injoinic
File Size	499.80 KB
Description	Fast Charging Physical Layer
Datasheet	IP2163H Datasheet

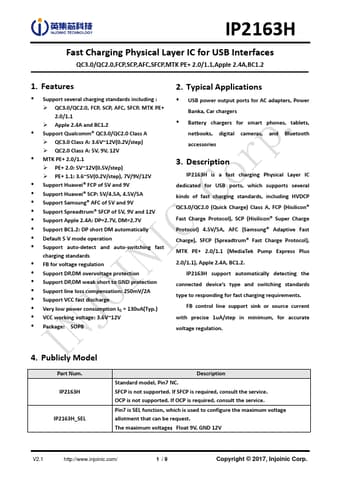

Additional preview pages of the IP2163H datasheet.

Product details

Description

IP2163H is a fast charging Physical Layer IC dedicated for USB ports, which supports several kinds of fast charging standards, including HVDCP QC3.0/QC2.0 (Quick Charge) Class A, FCP (Hisilicon® Fast Charge Protocol), SCP (Hisilicon® Super Charge Protocol) 4.5V/5A, AFC (Samsung® Adaptive Fast Charge), SFCP (Spreadtrum® Fast Charge Protocol), MTK PE+ 2.0/1.1 (MediaTek Pump Express Plus 2.0/1.1), Apple 2.4A, BC1.2.

Features

Support several charging standards including :.
QC3.0/QC2.0, FCP, SCP, AFC, SFCP, MTK PE+ 2.0/1.1.
Apple 2.4A and BC1.2.
Support Qualcomm® QC3.0/QC2.0 Class A.
QC3.0 Class A: 3.6V~12V(0.2V/step).
QC2.0 Class A: 5V, 9V, 12V.
MTK PE+ 2.0/1.1.
PE+ 2.0: 5V~12V(0.5V/step).
PE+ 1.1: 3.6~5V(0.2V/step), 7V/9V/12V.
Support Huawei® FCP of 5V and 9V.
Support Huawei® SCP: 5V/4.5A, 4.5V/5A.
Support Samsung® AFC of 5V and 9V.
