IP2723T - Fast Charging Physical Layer

IP2723T Description

IP2723T Fast Charging Physical Layer IC for USB Interfaces TypeC PD2.0/PD3.0/PPS,QC3.0/QC2.0,FCP,SCP,AFC, Apple 2.4A, BC1.2 1..
IP2723T is a fast charging Physical Layer IC dedicated for USB ports, which supports 11 kinds of fast charging standards, including USB PD2.

IP2723T Features

* Support charging standards including :
* Support QC4/QC4+ - Compatible with QC2.0/QC3.0 - Support Class B
* USB PD2.0/PD3.0/PPS DFP
* SCP, FCP
* AFC
* MTK PE+ 1.1&2.0
* Apple 2.4A, Samsung 2.0A and BC1.2
* Support USB PD2.0/PD3.0/PPS
* USB PD3.0 with PPS Certifi

IP2723T Applications

* USB power output ports for AC adapters, Power Banka, Car chargers
* Battery chargers for smart phones, tablets, netbooks, digital cameras, and Bluetooth accessories V1.32 http://www. injoinic. com/ 1 / 14 Copyright © 2020, Injoinic Corp. 4. Typical Application Schematic FB MODE IP2723T

📥 Download Datasheet

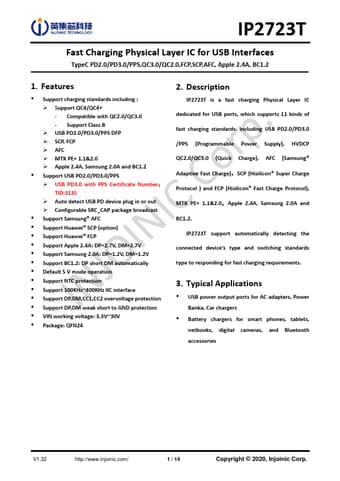

Preview of IP2723T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP2723T
Manufacturer
Injoinic
File Size
886.56 KB
Datasheet
IP2723T-Injoinic.pdf
Description
Fast Charging Physical Layer
