IP2738 - Fast Charging Controller

IP2738 Description

IP2738 Fast Charging Controller IC for multiple USB Interfaces TypeC/PD2.0/PD3.1, QC5/QC4+/QC3+/QC3.0/QC2.0, FCP, SCP, AFC, SFCP, MTK PE+ 2.0/1.1, UFC.
The IP2738 is a highly integrated fast charging controller dedicated for multiple USB interfaces which supports many kinds of charging standards inclu.

IP2738 Features

* Support Charging standards including
* USB Type-C and USB Power Delivery - Support USB PD2.0/PD3.1/PPS - Two independent Type-C Source - Integrated VCONN power and switch for reading E-Marker cable
* Support QC5/QC4+/QC3+/QC3.0/QC2.0 - Compatible with Class B
* Support FCP/SCP

IP2738 Applications

* Multiple USB power output ports for AC adapter, power bank, car charger, etc.
* Power supply for smart phones, tablets, netbooks, digital cameras, etc. V1.3 http://www. injoinic. com/ 1 / 12 Copyright © 2020, Injoinic Corp. 4. Typical Application Schematic IP2738
* Independent con

📥 Download Datasheet

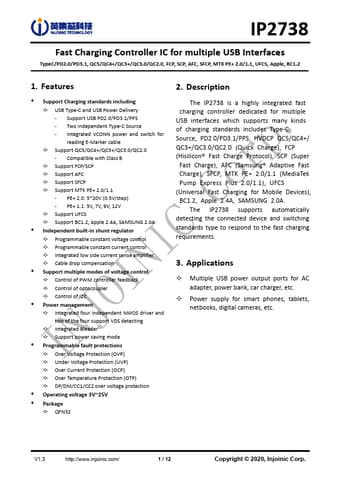

Preview of IP2738 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP2738
Manufacturer
Injoinic
File Size
750.27 KB
Datasheet
IP2738-Injoinic.pdf
Description
Fast Charging Controller
