MQ1080VP - High Power RF LDMOS FET

Innogration

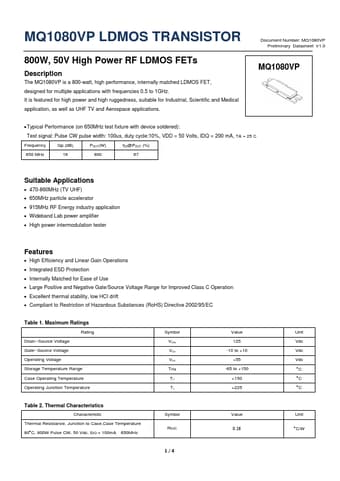

MQ1080VP Datasheet Preview — Preview of MQ1080VP PDF

Datasheet Details

Part number	MQ1080VP
Manufacturer	Innogration
File Size	379.31 KB
Description	High Power RF LDMOS FET
Datasheet	MQ1080VP-Innogration.pdf

MQ1080VP Product details

Description

The MQ1080VP is a 800-watt, high performance, internally matched LDMOS FET, designed for multiple applications with frequencies 0.5 to 1GHz. Typical Performance (on 650MHz test fixture with device soldered): Test signal: Pulse CW pulse width: 100us, duty cycle:10%, VDD =

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Internally Matched for Ease of Use.
La.
