MU1014V - High Power RF LDMOS FET

Product Overview

Innogration

Datasheet Details

Part number	MU1014V
Manufacturer	Innogration
File Size	316.90 KB
Description	High Power RF LDMOS FET
Datasheet	MU1014V Datasheet

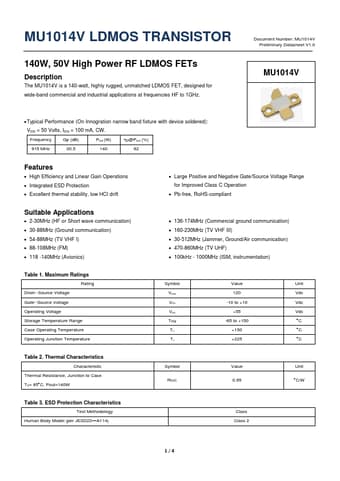

Additional preview pages of the MU1014V datasheet.

Product details

Description

The MU1014V is a 140-watt, highly rugged, unmatched LDMOS FET, designed for wide-band commercial and industrial applications at frequencies HF to 1GHz. Typical Performance (On Innogration narrow band fixture with device soldered): VDD = 50 Volts, IDQ = 100 mA, CW.Frequency Gp (dB) Pout (W) D@Pout (%) 915 MHz 20.5 140 62

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Excellent thermal stability, low HCI drift.
Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
Pb-free, RoHS-compliant Suitable.
