MU1510C - High Power RF LDMOS FET

Product Overview

Innogration

Datasheet Details

Part number	MU1510C
Manufacturer	Innogration
File Size	312.82 KB
Description	High Power RF LDMOS FET
Datasheet	MU1510C Datasheet

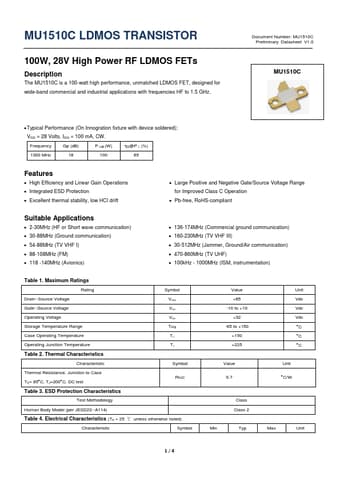

Additional preview pages of the MU1510C datasheet.

Product details

Description

The MU1510C is a 100-watt high performance, unmatched LDMOS FET, designed for wide-band commercial and industrial applications with frequencies HF to 1.5 GHz. Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 100 mA, CW.Frequency Gp (dB) P-1dB (W) D@P-1 (%) 1300 MHz 18 100 65

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Excellent thermal stability, low HCI drift.
Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
Pb-free, RoHS-compliant Suitable.
