ICS873034 - 3.3V LVPECL/ECL CLOCK GENERATOR

Datasheet Summary

Description

The ICS873034 is a low skew, high performance Differential-to-2.5V, 3.3V LVPECL/ECL HiPerClockS™ Clock Generator a n d a m e m b e r o f t h e HiPerClockS ™ family of High Perfor mance Clock Solutions from ICS.

The ICS873034 is characterized to operate from either a 2.5V or a 3.3V power supply.

Features

  • 3 differential 2.5V, 3.3V LVPECL / ECL output.
  • 1 differential PCLK, nPCLK input pair.
  • PCLK, nPCLK pair can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
  • Input frequency: 3.5GHz.
  • Translates any single ended input signal to 3.3V LVPECL levels with resistor bias on nPCLK input.
  • LVPECL mode operating voltage supply range: VCC = 2.375V to 3.8V, VEE = 0V.
  • ECL mode operating voltage supply range: VCC = 0V, VEE =.

📥 Download Datasheet

Datasheet preview – ICS873034

Datasheet Details

Part number ICS873034
Manufacturer Integrated Circuit System
File Size 298.23 KB
Description 3.3V LVPECL/ECL CLOCK GENERATOR
Datasheet download datasheet ICS873034 Datasheet
Additional preview pages of the ICS873034 datasheet.

📁 Similar Datasheet

  • ICS873033 - 3.3V 5V LVPECL/ECL CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS873033 - HIGH SPEED 4 DIFFERENTIAL-TO- 3.3V 5V LVPECL/ECL CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS8735-01 - ZERO DELAY CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS8735-21 - ZERO DELAY CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS87354I - CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS8735I-21 - ZERO DELAY CLOCK GENERATOR (IDT)
  • ICS8737-11 - CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS8737I-11 - DIFFERENTIAL-TO- 3.3V LVPECL CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS873990 - LOW VOLTAGE LVCMOS/ CRYSTAL-TO-LVPECL/ECL CLOCK GENERATOR (Integrated Circuit Systems)
  • ICS873990 - LOW VOLTAGE LVCMOS/ CRYSTAL-TO-LVPECL/ECL CLOCK GENERATOR (Integrated Circuit Systems)
Other Datasheets by Integrated Circuit System
  • ICS873032 - 5V LVPECL/ECL CLOCK GENERATOR
  • ICS855011 - 1-to-2 Differential-to-2.5V/3.3V CML Fanout Buffer
  • ICS858011 - 1-TO-2 DIFFERNTIAL-TO-CML FANOUT BUFFER
  • ICS1562 - programmable differential Output Video Dot Clock Generator
  • ICS1562A - User-programmable differential Output Graphics Clock Generator
  • ICS1562B - User-programmable differential Output Graphics Clock Generator
  • ICS94235 - Programmable System Clock Chip
  • ICS94236 - Programmable System Clock Chip

Full PDF Text Transcription

Click to expand full text

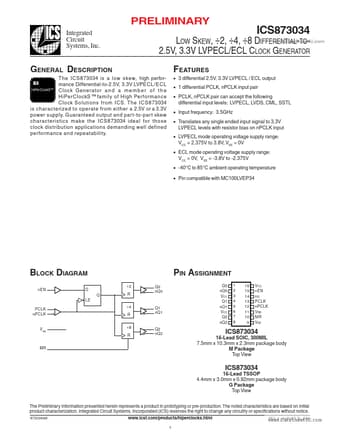

PRELIMINARY Integrated Circuit Systems, Inc. ICS873034 www.DataSheet4U.com LOW SKEW, ÷2, ÷4, ÷8 DIFFERENTIAL -TO2.5V, 3.3V LVPECL/ECL CLOCK GENERATOR GENERAL DESCRIPTION The ICS873034 is a low skew, high performance Differential-to-2.5V, 3.3V LVPECL/ECL HiPerClockS™ Clock Generator a n d a m e m b e r o f t h e HiPerClockS ™ family of High Perfor mance Clock Solutions from ICS. The ICS873034 is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and par t-to-par t skew characteristics make the ICS873034 ideal for those clock distribution applications demanding well defined perfor mance and repeatability. FEATURES • 3 differential 2.5V, 3.
