ICS873033 - 3.3V 5V LVPECL/ECL CLOCK GENERATOR

Datasheet Summary

Description

The ICS873033 is a high speed, high performance Differential-to-3.3V, 5V LVPECL/ECL HiPerClockS™ Clock Generator a n d a m e m b e r o f t h e HiPerClockS ™ family of High Perfor mance Clock Solutions from ICS.

The ICS873033 is characterized to operate from either a 3.3V or a 5V power supply.

Features

  • One differential 3.3V, 5V LVPECL / ECL output.
  • One differential PCLK, nPCLK input pair.
  • PCLK, nPCLK pair can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
  • Input frequency: 3.2GHz (maximum).
  • Translates any single ended input signal to 3.3V LVPECL levels with resistor bias on nPCLK input.
  • Additive phase jitter, RMS: 0.20ps (typical).
  • LVPECL mode operating voltage supply range: VCC = 3.0V to 5.5V, VEE = 0V.

📥 Download Datasheet

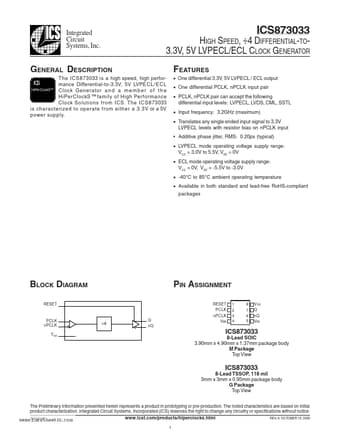

Datasheet preview – ICS873033
