ICS873991-147

LOW VOLTAGE LVCMOS/LVPECL-TO LVPECL/ECL CLOCK GENERATOR

ICS873991-147 Features

* Fourteen differential 3.3V LVPECL/ECL outputs

* Selectable differential LVPECL or REF_CLK inputs

* PCLK, nPCLK can accept the following input levels: LVPECL, CML, SSTL

* REF_CLK accepts the following input levels: LVCMOS, LVTTL

* Input clock frequency range:

ICS873991-147 General Description

The ICS873991-147 is a low voltage, low skew, 3.3V IC S LVPECL or ECL Clock Generator and a member of HiPerClockS™ the HiPerClockS™ family of High Performance Clock Solutions from IDT. The ICS873991-147 has two selectable clock inputs. The PCLK, nPCLK pair can accept an LVPECL input and the REF_CLK .

ICS873991-147 Datasheet (337.98 KB)

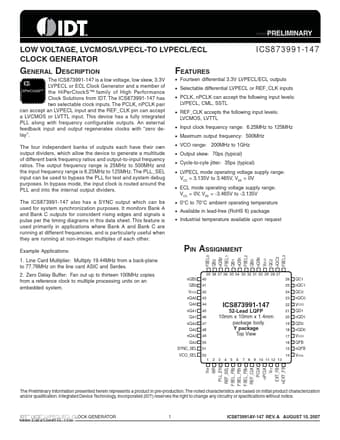

Preview of ICS873991-147 PDF

Datasheet Details

Part number:

ICS873991-147

Manufacturer:

Integrated Device Technology

File Size:

337.98 KB

Description:

Low voltage lvcmos/lvpecl-to lvpecl/ecl clock generator.
