ICS8714008I - Zero Delay Buffer/ Clock Generator

Datasheet Summary

Description

The ICS8714008I is Zero-Delay Buffer/Frequency Multiplier with eight differential HCSL output pairs, and uses external feedback (differential feedback input and output pairs) for “zero delay” clock regeneration.

Features

Eight 0.7V differential HCSL output pairs, individually selectable for 100MHz or 125MHz for PCIe and Ethernet.

Datasheet Details

Part number	ICS8714008I
Manufacturer	Integrated Device Technology
File Size	394.46 KB
Description	Zero Delay Buffer/ Clock Generator
Datasheet	ICS8714008I Datasheet
Additional preview pages of the ICS8714008I datasheet.

📁 Similar Datasheet

ICS87158 - LVPECL-TO-HCSL/LVCMOS (Integrated Circuit Systems)

ICS87002-05 - 1:2 LVCMOS/LVTTL-to-LVCMOS/LVTTL Zero Delay Buffer (IDT)

ICS87004AGT - 1:4/ DIFFERENTIAL-TO-LVCMOS/LVTTL ZERO DELAY CLOCK GENERATOR (Integrated Circuit Systems)

ICS87004I - Differential-to-LVCMOS/LVTTL Zero Delay Clock Generator (IDT)

ICS87008I - 1-TO-8 DIFFERENTIAL-TO-LVCMOS/LVTTL CLOCK GENERATOR (IDT)

ICS873032 - 5V LVPECL/ECL CLOCK GENERATOR (Integrated Circuit System)

ICS873033 - 3.3V 5V LVPECL/ECL CLOCK GENERATOR (Integrated Circuit Systems)

ICS873033 - HIGH SPEED 4 DIFFERENTIAL-TO- 3.3V 5V LVPECL/ECL CLOCK GENERATOR (Integrated Circuit Systems)

ICS873034 - 3.3V LVPECL/ECL CLOCK GENERATOR (Integrated Circuit System)

ICS8735-01 - ZERO DELAY CLOCK GENERATOR (Integrated Circuit Systems)

Full PDF Text Transcription

Click to expand full text

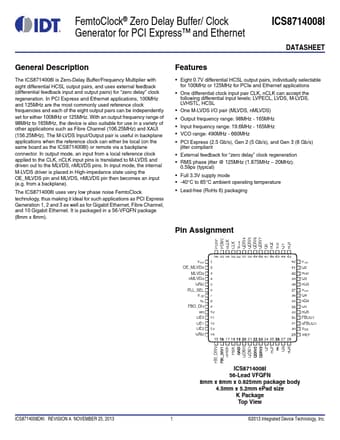

FemtoClock® Zero Delay Buffer/ Clock Generator for PCI Express™ and Ethernet ICS8714008I DATASHEET General Description The ICS8714008I is Zero-Delay Buffer/Frequency Multiplier with eight differential HCSL output pairs, and uses external feedback (differential feedback input and output pairs) for “zero delay” clock regeneration. In PCI Express and Ethernet applications, 100MHz and 125MHz are the most commonly used reference clock frequencies and each of the eight output pairs can be independently set for either 100MHz or 125MHz. With an output frequency range of 98MHz to 165MHz, the device is also suitable for use in a variety of other applications such as Fibre Channel (106.25MHz) and XAUI (156.25MHz).
