ICS874003-02 - PCI EXPRESS JITTER ATTENUATOR

Product Overview

Integrated Device Technology

Part number	ICS874003-02
Manufacturer	Integrated Device Technology
File Size	1.01 MB
Description	PCI EXPRESS JITTER ATTENUATOR
Datasheet	ICS874003-02 Datasheet

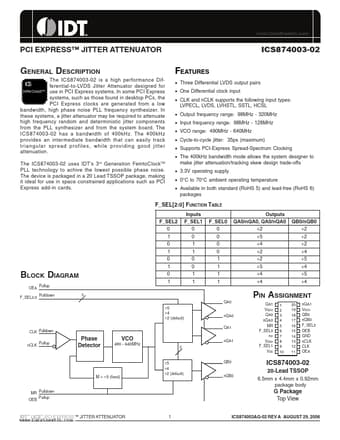

Additional preview pages of the ICS874003-02 datasheet.

The ICS874003-02 is a high performance DifIC S ferential-to-LVDS Jitter Attenuator designed for HiPerClockS™ use in PCI Express systems.

Three Differential LVDS output pairs.
One Differential clock input.
CLK and nCLK supports the following input types: LVPECL, LVDS, LVHSTL, SSTL, HCSL.
Output frequency range: 98MHz - 320MHz.
Input frequency range: 98MHz - 128MHz.
VCO range: 490MHz - 640MHz.
Cycle-to-cycle jitter: 35ps (maximum).
Supports PCI-Express Spread-Spectrum Clocking.
The 400kHz bandwidth mode allows the system designer to make jitter attenu.
